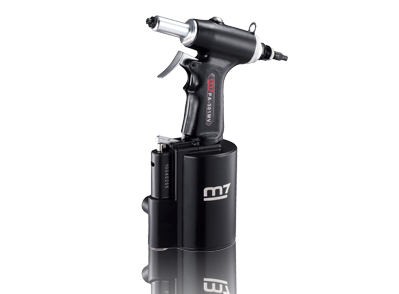

Air Hydraulic Riveter Air Inlet: 1/4" PA-301MV

PA-301MV

KingTony Group

(click image to enlarge)
Quick Overview

    Features:
    • Superior durability, excellent for mass production line of all kinds.
    • Strengthened clamping jaws were made of high quality alloy steel, which well improved the lifetime.
    • The auto mandrel retracting mechanism, hidden inside the housing, efficiently reduces the malfunction rate.
    • The ergonomic shape increases operation comfort.
    • 2.4, 3.2, 4.0 and 4.8 mm rivet noses are included.
    • The auto mandrel retracting design simultaneously improves the working efficiency and reduces the malfunction rate.
Interested in this item or want more information?
Call Mon. through Fri. 8:00 AM - 5:00 PM PST
Phone: 714-573-4083
Email: sales@48ws.com

Can't find what you want? Give us a call and we can help you find it.
Details
Traction Power lb-f (kg-f) Stroke Length mmCapacity mmAvg. Air Consumption CFM (L/min)Air Pressure PSI (bar)Net Weight LBS (kg)Air Hose inchSound Pressure EN ISO 15744 dBAVibration Level m/s²
2303 (1045)163/32'' (2.4-4.8)90 (6.3)(1.48)3.3(1.75)3/8"79.70.3
Additional Information
Manufacturer: KingTony Group
For More Information on the Air Hydraulic Riveter Air Inlet: 1/4" PA-301MV, [Click Here] to Link to Manufacturer Web Site
