Forged Eye and Eye Turnbuckle

S0107-EE07

Suncor Stainless, Inc.

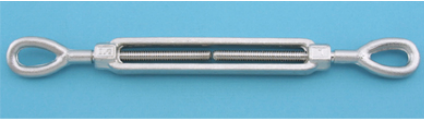

The Forged Eye And Eye Turnbuckle Feature An Open Body.
(click image to enlarge)
Quick Overview
    Interested in this item or want more information?
    Call Mon. through Fri. 8:00 AM - 5:00 PM PST
    Phone: 714-573-4083
    Email: sales@48ws.com

    Can't find what you want? Give us a call and we can help you find it.
    Details

    The Forged Eye And Eye Turnbuckle Feature An Open Body. These Turnbuckles Are Available In Sizes Ranging From 1/4" To 1-1/4" To Fit Every Project And Are Made From Grade 316 Stainless Steel For Maximum Corrosion Resistance And Durability. They Are Ideal For Marine And Industrial Applications.



    FORGED EYE & EYE TURNBUCKLE
    GRADE: 316-NM STAINLESS STEEL
    Meets WLL & dimensions of ASTM specification F1145-92 Type 1, Class D

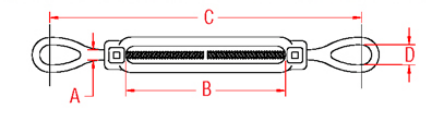

    ITEM A(size) B(adjustment) C DWLL(lb) WT(lb)
    S0107-EE07 1/4" 4.00" 8.00" 0.33"500 0.30
    S0107-EE08 5/16" 4.50" 9.25" 0.41"800 0.50
    S0107-EE10 3/8" 6.00" 11.50" 0.50"1,200 0.85
    S0107-EE13 1/2" 6.00" 13.00" 0.75"2,200 1.30
    S0107-EE165/8"6.00"14.50"0.87"3,5002.30
    S0107-EE203/4"6.00"16.25"1.00"5,2003.50
    S0107-EE251"6.00"20.00"1.38"8,0008.85
    S0107-EE25-11"12.00"25.50"1.38"8,00010.91
    S0107-EE32-1 1-1/4" 12.00" 28.38" 1.71"12,500 17.60
    Additional Information
    Manufacturer: Suncor Stainless, Inc.
    For More Information on the Forged Eye and Eye Turnbuckle, [Click Here] to Link to Manufacturer Web Site
