Forged Hook and Hook Turnbuckle

S0111-HH07

Suncor Stainless, Inc.

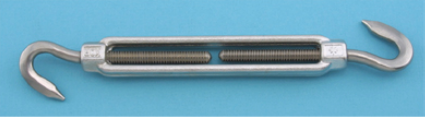

The Forged Hook And Hook Turnbuckle Feature An Open Body.
(click image to enlarge)
Quick Overview
    Interested in this item or want more information?
    Call Mon. through Fri. 8:00 AM - 5:00 PM PST
    Phone: 714-573-4083
    Email: sales@48ws.com

    Can't find what you want? Give us a call and we can help you find it.
    Details

    The Forged Hook And Hook Turnbuckle Feature An Open Body. These Turnbuckles Are Available In Sizes Ranging From 1/4" To 3/4" To Fit Every Project And Are Made From Grade 316 Stainless Steel For Maximum Corrosion Resistance And Durability. They Are Ideal For Marine And Industrial Applications.



    FORGED HOOK & HOOK TURNBUCKLE
    GRADE: 316-NM STAINLESS STEEL
    Meets WLL & dimensions of ASTM specification F1145-92 Type 1, Class E

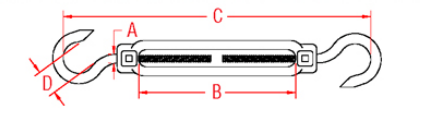

    ITEM A(size) B(adjustment) C DWLL(lb) WT(lb)
    S0111-HH07 1/4" 4.00" 6.87" 0.39"300 0.22
    S0111-HH08 5/16" 4.50" 7.75" 0.44"500 0.35
    S0111-HH10 3/8" 6.00" 10.37" 0.52"750 0.60
    S0111-HH13 1/2" 6.00" 10.50" 0.55"1,050 1.10
    S0111-HH165/8"6.00"14.25"0.57"1,6001.90
    S0111-HH20 3/4" 6.00" 14.25" 0.90"2,000 2.75
    Additional Information
    Manufacturer: Suncor Stainless, Inc.
    For More Information on the Forged Hook and Hook Turnbuckle, [Click Here] to Link to Manufacturer Web Site
