Forged Turnbuckle Body

S0106-BD07

Suncor Stainless, Inc.

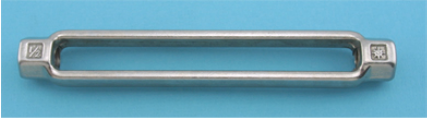

The Forged Turnbuckle Body Is Open And Available In Sizes Ranging From 1/4" To 1-1/4" To Fit Every Project.
(click image to enlarge)
Quick Overview
    Interested in this item or want more information?
    Call Mon. through Fri. 8:00 AM - 5:00 PM PST
    Phone: 714-573-4083
    Email: sales@48ws.com

    Can't find what you want? Give us a call and we can help you find it.
    Details

    The Forged Turnbuckle Body Is Open And Available In Sizes Ranging From 1/4" To 1-1/4" To Fit Every Project. These Bodies Are Made From Grade 316 Stainless Steel For Maximum Corrosion Resistance And Durability, Making Them Ideal For Marine And Industrial Turnbuckle Applications.



    FORGED TURNBUCKLE BODY
    GRADE: 316-NM STAINLESS STEEL
    Meets WLL & dimensions of ASTM specification F1145-92 Type 1

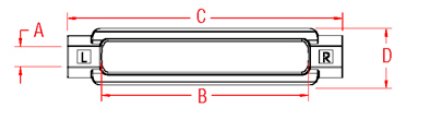

    ITEMA(size)B(adjustment)CDWLL(lb)WT(lb)
    S0106-BD07 1/4" 4.00" 4.75" 0.72"500 0.15
    S0106-BD08 5/16" 4.50" 5.50" 0.82"800 0.25
    S0106-BD103/8"6.00"7.13"0.97"1,2000.35
    S0106-BD131/2"6.00"7.50"1.16"2,2000.55
    S0106-BD165/8"6.00"7.81"1.38"3,5000.90
    S0106-BD203/4"6.00"8.19"1.69"5,2001.15
    S0106-BD25 1" 6.00" 9.00" 2.31"8,000 2.69
    S0106-BD25-1 1" 12.00" 14.81" 2.31"8,000 4.17
    S0106-BD32-1 1-1/4" 12.00" 15.13" 2.62"12,500 5.90
    Additional Information
    Manufacturer: Suncor Stainless, Inc.
    For More Information on the Forged Turnbuckle Body, [Click Here] to Link to Manufacturer Web Site
