Eye Bolt With Shoulder 080463

80463

Sea-Dog Corporation

Machined 304 Stainless

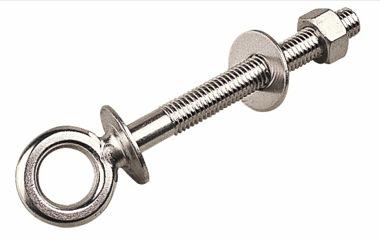

(click image to enlarge)
Quick Overview
    Interested in this item or want more information?
    Call Mon. through Fri. 8:00 AM - 5:00 PM PST
    Phone: 714-573-4083
    Email: sales@48ws.com

    Can't find what you want? Give us a call and we can help you find it.
    Details

    All Sea-Dog Eye bolts listed above have metric threads. Note: Part number 080504 has a usable length of 3-15/16" although only 3-1/4" of the shaft is threaded. Part number 080506 has a usable length of 6-5/16" although only 3-1/4" of the shaft is threaded.


    Technical Info :

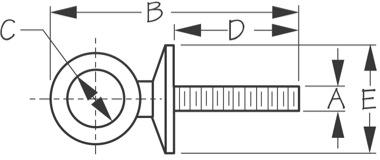

    BulkDisplayABCDEB.S. (lb.)WeightStd. Pack
    80463080463-16 mm-1 mm2-3/16"1/2"1-1/8"1"30000.0810 ea
    80466080466-16 mm-1 mm3-3/8"1/2"2-5/16"1"30000.0910 ea
    80483080483-18 mm-1.25 mm2-9/16"9/16"1-5/16"1"52500.1110 ea
    80488080488-18 mm-1.25 mm4-5/16"5/8"3"1"52500.1410 ea
    80495080495-110 mm-1.50 mm3-3/8"5/8"1-15/16"1-3/16"89500.1810 ea
    80499080499-110 mm-1.50 mm5-3/8"5/8"3-15/16"1-3/16"89500.2410 ea
    80504080504-112 mm-1.75 mm5-1/2"3/4"3-15/16"1-3/16"101000.3310 ea
    80506080506-112 mm-1.75 mm7-7/8"3/4"6-5/16"1-3/16"101000.4210 ea
    Additional Information
    Manufacturer: Sea-Dog Corporation
    For More Information on the Eye Bolt With Shoulder 080463, [Click Here] to Link to Manufacturer Web Site
