Buss Bar Screw Terminal 426722

426722

Sea-Dog Corporation

Tin Plated Brass/ABS

(click image to enlarge)
Quick Overview
    Interested in this item or want more information?
    Call Mon. through Fri. 8:00 AM - 5:00 PM PST
    Phone: 714-573-4083
    Email: sales@48ws.com

    Can't find what you want? Give us a call and we can help you find it.
    Details

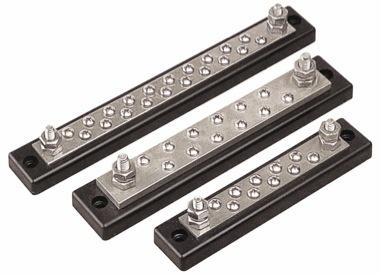

    Both part numbers 426722 and 426724 are equipped with a 2 each 1/4" studs for main wire connection. Both have a maximum of 48 volts DC. Part number 426733 is equipped with 2 each 5/16" studs for main wire connection. Maximum 48 volts DC. Part number 426722 has certification by ISO, ABYC, SAE, USCG and CE low voltage directive standards.


    Technical Info :

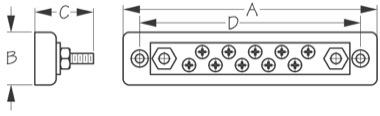

    BulkDisplayTerminalsABCDAmpsFastenerWeightStd. Pack
    426722426722-110 x #8-326"1-1/4"1-3/8"5-3/16"150 A#10 RH0.241 ea
    426724426724-120 x #8-329-1/8"1-1/4"1-3/8"8-7/16"150 A#10 RH0.361 ea
    426733426733-112 x #107-15/16"1-1/2"1-5/8"7-1/8"250 A#10 RH0.691 ea
    Additional Information
    Manufacturer: Sea-Dog Corporation
    For More Information on the Buss Bar Screw Terminal 426722, [Click Here] to Link to Manufacturer Web Site
