Vinyl Chloride Pipe Core Bits Kit

PCEWKITR

Miyanaga Co. Ltd.

For precisely drilling a large-diameter hole in PVC pipes.
(click image to enlarge)
Quick Overview
  • The tooth geometry, which achieves high cutting ability, realizes high-speed cutting with rotary drills.
  • Since the cutter and shank are easily detached with a single action, the removal of cut cores is also easy.
  • Drilling a large-diameter hole in PVC pipes for drainage system.
Interested in this item or want more information?
Call Mon. through Fri. 8:00 AM - 5:00 PM PST
Phone: 714-573-4083
Email: sales@48ws.com

Can't find what you want? Give us a call and we can help you find it.
Details
    SPECIFICATIONS
    Cutter size: ø120mm to 220mm (ø4-3/4" to 8-11/16")
    Max. drilling depth: 80mm (3-1/8") (Cutter length: 110mm (4-1/4"))
    Shank size: L shanks: 13mm (33/64")
    Applicable electric drill: Portable electric drills (in the rotary-only mode)


    Kit


    Item Part No. (Straight shank sets) Part No.(SDS shank sets) Combination
    Vinyl chloride pipe core bit kit PCEWKIT PCEWKITR Cutters of ø 120mm (4-3/4") and 170mm (6-11/16"), L shank, center drill

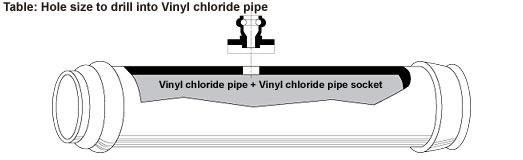

    Nominal diameter of vinyl-chloride-pipe socket Cutter size of Vinyl chloride pipe core bits
    100mm (3-7/8") 120mm (4-3/4")
    150mm (5-7/8") 170mm (6-11/16")
    200mm (7-7/8") 220mm (8-11/16")
Additional Information
Manufacturer: Miyanaga Co. Ltd.
For More Information on the Vinyl Chloride Pipe Core Bits Kit, [Click Here] to Link to Manufacturer Web Site
