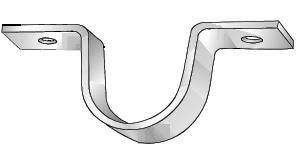

507 Series Short Pipe Strap - 507-124

507-124

Globe Pipe Hanger Products

Designed to hold piping flush with the adjacent surface.
(click image to enlarge)
Quick Overview

  • Size Range : 1/2" Through 4" Pipe Sizes.
  • Material : Low Carbon Steel.
  • Finish : Black.
  • Ordering : Specify Finish; Model Number And Pipe Size.
  • Approvals : Complies With Federal Specifications A-A-1192A (Type 26) And Manufactures' Standardization Society Sp-69 (Type 26).
  • Function : Designed To Hold Piping Flush With The Adjacent Surface. Sizes 1/2" Through 2" Are Furnished With Two Screw Holes. Sizes 2 1/2" Through 4" Are Furnished With Four Screw Holes.
Interested in this item or want more information?
Call Mon. through Fri. 8:00 AM - 5:00 PM PST
Phone: 714-573-4083
Email: sales@48ws.com

Can't find what you want? Give us a call and we can help you find it.
Details


Specifications
MaterialLow Carbon Steel
FinishBlack
Pipe Size2 1/2 inches

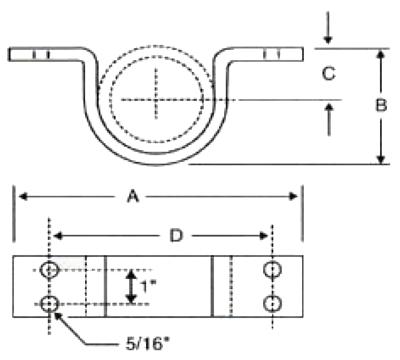

A6 inches
B2 7/8 inches
C1 1/8 inches
D5 inches
Material Thickness3 gauge
Material Size1 1/4 inches
Max. Recommended Load500 lbs
Approx. Weight per 100 (pcs.)89 lbs
Carton Quantity25
Additional Information
Manufacturer: Globe Pipe Hanger Products
For More Information on the 507 Series Short Pipe Strap - 507-124, [Click Here] to Link to Manufacturer Web Site
