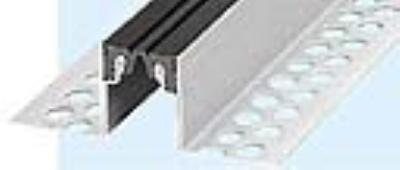

ES 33 Stainless Steel and Elastomer Floor Joint

ES-33

EMSEAL Joint Systems, Ltd.

For joint sizes up to 1 1/4" (30 mm) In conditions with standard duty interior traffic.
(click image to enlarge)
Quick Overview
  • Composition : Stainless/Elastomeric
  • Movement Capability : 3/8" (+ 3/16", - 3/16")
  • Load Rating : Standard
  • Joint Size Up To : 1 ¼"
Interested in this item or want more information?
Call Mon. through Fri. 8:00 AM - 5:00 PM PST
Phone: 714-573-4083
Email: sales@48ws.com

Can't find what you want? Give us a call and we can help you find it.
Details



For joint sizes up to 1 1/4"(30 mm)
In conditions with standard duty interior traffic.

Joint Sizes Up To:Movement CapabilityVisible Width
1 1/4"3/8"(+ 3/16", - 3/16")1 3/8"




Floor-to-Wall Version (E-4)



INSTALLATION HEIGHT & DIMENSIONS:
Model:Installation HeightFloor-To-Wall OptionsProduction LengthInstallation HeightBlockout Width
ES 33/15005/8"
(15mm)		E-3(wall flange turned up)

E-4 (wall flange turned down)		13.12'
(4 m)		Finished floor level = Installation Height + 1/4-inch (6mm) for epoxy-mortar setting-bed For retrofit or solid slab installations, Blockout recess width will vary depending on joint-gap size--Consult EMSEAL
ES 33/35001 1/2"
(35mm)
ES 33/50002"
(50mm)
Additional Information
Manufacturer: EMSEAL Joint Systems, Ltd.
For More Information on the ES 33 Stainless Steel and Elastomer Floor Joint, [Click Here] to Link to Manufacturer Web Site
