Contraction joint for heavy duty floors For 16 mm joint sizes

ESF-16

EMSEAL Joint Systems, Ltd.

For max. mean-temperature joint widths up to 20 mm (3/4-inches)

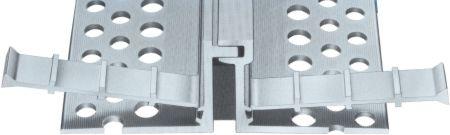

(click image to enlarge)
Quick Overview
  • Composition : Solid Aluminum
  • Movement Capability : 3/16" (+ 1/8", - 1/16")
  • Load Rating : Heavy
  • Joint Size Up To : 7/16"
Interested in this item or want more information?
Call Mon. through Fri. 8:00 AM - 5:00 PM PST
Phone: 714-573-4083
Email: sales@48ws.com

Can't find what you want? Give us a call and we can help you find it.
Details

Contraction joint for heavy duty floors.

For 16 mm (7/16-inches) joint sizes







    • For max. mean-temperature joint widths up to 20 mm (3/4-inches)
    • Installation Leg Height choices: 1 3/8" (35mm); 1 3/4" (45mm); 2 3/8" (60mm)
    • Blockout depth = Leg Height + 3mm (1/8 inch)
    • Blockout width will vary depending on joint-gap size--Consult EMSEAL
    • Total movement capability: 3/16-inches: +1/8" and -1/16" (5 mm = +3mm and -2mm)
    • Load capacity: Normal light pedestrian, and typical office use.
    • Fabrication length = 4 meters (13.12 LF)
    • Deck-to-wall (E-4) version available.

    Special properties
    • ADA compliant
    • Fire-rating available with EMSHIELD DFR--Consult EMSEAL

Additional Information
Manufacturer: EMSEAL Joint Systems, Ltd.
For More Information on the Contraction joint for heavy duty floors For 16 mm joint sizes, [Click Here] to Link to Manufacturer Web Site
