Scaffolding Ringbolt (SRB) 12mm

SRB12-120x52

Excalibur Screwbolts

(click image to enlarge)
Quick Overview

    Product Features :

    • Versatility - one anchor for all substrates
    • Simple, Fast Installation
    • Close to Edge Ability, non-expanding
    • Permanent Removable or Tamper Resistant‚ your choice.
    • Exceptional Strength
    • Immediate Load Capability
    • Cost Effective
    • Vibration Increases Tensile Performance
Interested in this item or want more information?
Call Mon. through Fri. 8:00 AM - 5:00 PM PST
Phone: 714-573-4083
Email: sales@48ws.com

Can't find what you want? Give us a call and we can help you find it.
Details

SSB 12mm Options :

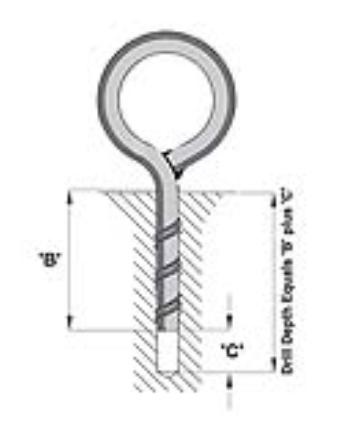

Ringbolt DiameterRingbolt Internal DiameterClearance Hole DiameterSafe Load on eyeMax Fixing ThicknessThread Length 'B'Clearance Depth 'C'Box QuantityOrder code:
12mm 52mm 15mm 16.39 kN - 652425SRB 12 / 120 x52
Drill Bit DiameterConcrete and Brick12.0mm
Soft materials11.0mm

SRB 12mm Technical Data :

MaterialBoron Steel BS3111/9/2.1.A
FinishZinc & Yellow passivated as standard
Tensile strength800N/mm2 Case hardened
Other sizesOther lengths of all diameters are available to special order subject to quantity
Embedment concrete and brickMinimum recommended is 4.5 × bolt diameter
Soft blockMinimum recommended is 75mm
Edge distance & spacingsFor Edge distances between 5 dia. and 10 dia. see reduction factors
Other finishesOther platings & fi nishes are available to special order subject to quantity
Additional Information
Manufacturer: Excalibur Screwbolts
For More Information on the Scaffolding Ringbolt (SRB) 12mm, [Click Here] to Link to Manufacturer Web Site
