Coleman Cables Rg6 18Bc 80 Al Plenum

921009

Coleman Cable - CCI

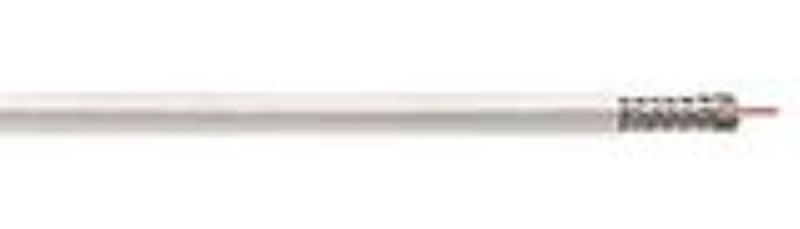

(click image to enlarge)
Quick Overview
    Features & Application:-
    • RG6 Type
    • FEP Dielectric
    • PVC Low Smoke Plenum Jacket
    • 3.0 GHZ
    • CATV
Interested in this item or want more information?
Call Mon. through Fri. 8:00 AM - 5:00 PM PST
Phone: 714-573-4083
Email: sales@48ws.com

Can't find what you want? Give us a call and we can help you find it.
Details

Construction Parameters

Electrical Properties:-

Wall (in)* OD (in)*
Conductor 18 AWG (1/.040) Solid Bare Copper - 0.040
Dielectric Foam FEP color natural 0.064 0.168
Shielding 1 & 2 Aluminum/Polyester/Aluminum Foil with 80% Aluminum Braid - 0.194
Jacket Low Smoke PVC 0.017 0.228
VALUE*
Conductor Resistance (ohms/kft) - 6.5
Impedance(ohms) - 75
Capacitance (pF/ft) - 16.5
Velocity of Propagation (%) - 82
Attenuation** (db/100 ft) 50 MHz 1.5
100 MHz 1.9
200 MHz 3.2
550 MHz 5.3
750 MHz 6.1
950 MHz 6.8
1450 MHz 9.3
1750 MHz 10.5
2150 MHz 12
2200 MHz 12.5
3000 MHz 14.5
Additional Information
Manufacturer: Coleman Cable - CCI
For More Information on the Coleman Cables Rg6 18Bc 80 Al Plenum, [Click Here] to Link to Manufacturer Web Site
