1000 V Surge Protective Devices

TDS503BR1000DC

Caddy

(click image to enlarge)
Quick Overview
    • Designed to provide economical and reliable protection from transients on DC power systems
    • Compact design fits into inverters and solar combiner boxes
    • Conveniently packaged for easy installation on DIN rail
    • Provides remote
Interested in this item or want more information?
Call Mon. through Fri. 8:00 AM - 5:00 PM PST
Phone: 714-573-4083
Email: sales@48ws.com

Can't find what you want? Give us a call and we can help you find it.
Details

Specifications :-

ModelTDS502BR300DCTDS502BR600DCTDS503BR1000DC
Nominal Voltage - DC300 V600 V1,000 V
Max Cont. OperatingVoltage, U325 V DC790 V DC1100 V DC
Frequency0-100 Hz
TechnologyGDT MOV
Max Discharge Current, Imax50 kA 8/20 µs
Nominal Discharge Current, In20 kA 8/20 µs
Protection ModesL-L, L-PE
StatusChange-over contact (Form C dry) 250V~/0.5A, max 1.5 mm² (#14AWG) connecting wire Mechanical flag

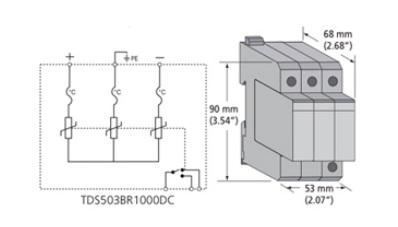

Dimensions HxDxW:mm (in)90 x 68 x 35 (3.54 x 2.68 x 1.38)90 x 68 x 53 (3.54 x 2.68 x 2.07)
Module Width2 M3 M
EnclosureDIN 43 880, UL94V-0 thermoplastic, IP 20 (NEMA-1)
Connection=25 mm² (#4AWG) stranded
=35 mm² (#2AWG) solid
Mounting35 mm top hat DIN rail
Temperature-40°C to 80°C (-40°F to 176°F)
Humidity0 % RH to 90 % RH
ApprovalsTDS Replaceable module: CE, IEC 61643-1, UL 1449 Ed3 Recognized
Component Type 2
Surge Rated to MeetANSI®/IEEE® C62.41-1991 Cat A, Cat B, Cat C
ANSI®/IEEE® C62.41.2 Scenario II, Exposure 2, 50 kA 8/20 µs
Replacement ModuleTDS150M277TDS150M560TDS150M277, TDS150M560
Weight: kg (lbs)0.24 (0.53)0.24 (0.53)0.36 (0.78)
Additional Information
Manufacturer: Caddy
For More Information on the 1000 V Surge Protective Devices, [Click Here] to Link to Manufacturer Web Site
