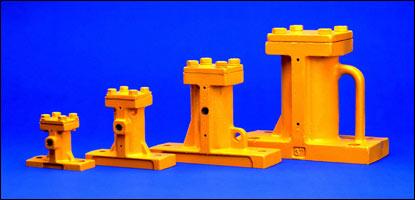

Global Footplate Mount Piston Vibrators

Global_1

Global

(click image to enlarge)
Quick Overview
    GLOBAL P-SERIES PISTON VIBRATORS Selection Guide BIN WALL THICKNESS MATERIAL IN SLOPED SECTION OF BIN OR HOPPER LBS 200 700 2,000 6,000 20,000 40,000 INCHES MM LBS 200 700 2,000 6,000 20,000 40,000 1/16 - 1/8 1.6 - 3.2   P1 AC P1 IM
    P1¼ AC P1¼ IM
    TMD ¼ IM       3/16 - 1/4 4.7 - 6.3       P1-5/8 AC P1-5/8 IM
    P2 AC P2 IM
    TMD2 IM   1/4 - 3/8 6.3 - 9.5           P3 AC
    PRR-1300 P3 IM
    TMD 3 IM 3/8 - 1/2 9.5 - 12.7             TMD 4 IM
Interested in this item or want more information?
Call Mon. through Fri. 8:00 AM - 5:00 PM PST
Phone: 714-573-4083
Email: sales@48ws.com

Can't find what you want? Give us a call and we can help you find it.
Details
  • Available in either Impact (IM) type or Air-Cushioned (AC) type.
  • Railcar Models (PRR) - Come standard with wedge mount to fit railcar pockets and Teflon® coated piston and bore.
  • Matchplate Models (MP) - Impact type with universal base mount used on foundry matchplates. Internal spring allows any mount orientation.
  • Timed Impact Models (TMD) - For use with electric or pneumatic timers.

  • Filtered, lubricated air.
  • 20-60 PSI depending on model. 1.5-30 CFM.
  • Maximum Ambient Temperature = 250°F (120°C).

  • Since piston vibrators create material flow by flexing the bin wall, selection of the proper vibrator is based on the bin wall thickness. The thicker the wall the bigger the vibrator needed.
  • If selecting a more quiet Air-Cushioned model you generally use one size larger than an Impacting model sized for the same application. Refer to the chart below.



    • Maximum Force - Impact (IM) model produces maximum force & frequency for size of vibrator. Quiet Model Available - Air-Cushioned (AC) model produces less noise than Impact models. Energy Efficient - Low air consumption. Durable - Iron uni-body construction with chrome plated piston. Versatile - Easy to control force and frequency by adjusting air supply. Long Life Railcar Models - Teflon® coating on piston and bore give extended life. One Year Warranty
    Additional Information
    Manufacturer: Global
