Details

Material: High impact copolymer polypropelene
Special Features: 4 sizes to choose from. All can be cut to size.
Terra System One provides a level surface for installation of concrete pavers over a pitched surface or roof. The system ensures precise paver alignment and even spacing that allows for drainage and air circulation critical to the health of a deck installed over any waterproof membrane. It also allows for easier access to the subsurface for scheduled maintenance or repairs without damage to the paved surface. Terra-Stand can also be installed at grade level where the surface is not pitched.

Components and Materials:

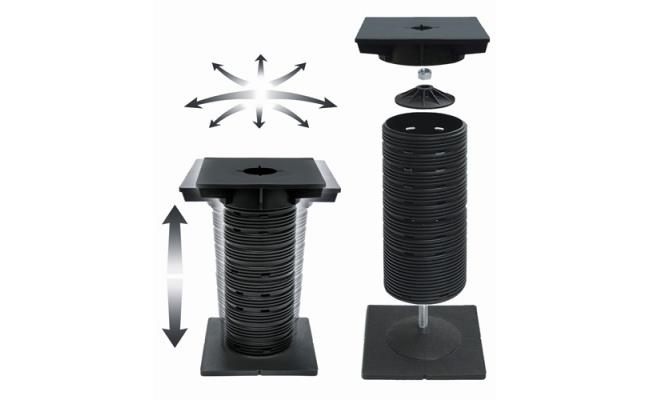

The Terra-Stand is made of a high impact copolymer polypropelene adjusting from 2” to 21” in height and slope compensating up to 5/8” to provide a level installation. Outside base dimension of 7” x 7” provides contact surface of 49” square. It is installed on previously established grid lines, adjusted for height and slope and ready for installation. Load of 3,000 lbs per pedestal.
Basic Use:
Terra-Stand is designed for exterior application using Tectura Designs Pavers on pitched roof decks, plazas, roof plazas, parking garages, roof terraces, and more.

An average project will require one Terra-Stand for each Tectura Designs Paver, plus the perimeter.

Additional Information

Manufacturer: Wausau Tile
