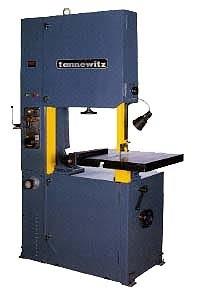

TR-2812VW FEATURES Enlarged speed range: 50-5200 ft/min to cut all materials. Infinitely variable speed. Blade welder, grinder and shear are front mounted for quick, accurate blade repair and installation. Maintenance-free air pump provides air to remove chips from the point of cut. Digital blade speed indicator. Blade tension indicator. Totally enclosed transmission. TEFC 3 Phase motor. Rip fence. Heavy duty cast iron table. Magnetic, low voltage controls. Brush for cleaning lower drive wheel.

Interested in this item or want more information?
Call Mon. through Fri. 8:00 AM - 5:00 PM PST
Phone: 714-573-4083
Email: sales@48ws.com

Can't find what you want? Give us a call and we can help you find it.

Details

TR-2812VWH Specifications

STANDARD MODELS	20"	28"	40"
THROAT DEPTH	20"	28"	39 3/4"
WORK HEIGHT	12 3/4"	12 3/4"	12 3/4"
BLADE WIDTH	1/8" - 1"	1/8" - 1"	1/8" - 1"
BLADE LENGTH	161 1/2"	198"	194 7/8"
BANDWHEEL DIMENSIONS	20 1/2" x 1 3/4"	28 3/8" x 1 3/4"	17" x 1 3/4"
BANDWHEELS NUMBER	2	2	4
WHEEL TIRES	Replaceable rubber tire	Replaceable rubber tire	Replaceable rubber tire
BLADE GUIDES	Tool steel insert w/wear pin	Tool steel insert w/wear pin	Tool steel insert w/wear pin
TABLE TYPE	FIXED	FIXED	FIXED
MAIN TABLE SIZE	29 1/8" x 26 3/4"	29" x 26 3/4"	29" x 26 3/4"
AUXILIARY TABLE SIZE
TABLE TILT	45° R, 15° L	45° R, 15° L	45° R, 15° L
TABLE HEIGHT	40"	42"	40"
BLADE MOTOR DRIVE	3HP 3PH	3HP 3PH	3HP 3PH
ELECTRIC CONTROLS	Magnetic starter w/115V	Magnetic starter w/115V	Magnetic starter w/115V
BLADE SPEEDS	50-5200 FPM	50-5200 FPM	50-5200 FPM
TRANSMISSION	4-Speed Totally enclosed	4-Speed Totally enclosed	4-Speed Totally enclosed
BLADE WELDER, GRINDER, SHEAR	1" CAPACITY STD	1" CAPACITY STD	1" CAPACITY STD
DIMENSION (L X W X H)	51" x 41" x 81"	61 3/8" x 41" x 90 3/4"	70 1/2" x 40 1/2" x 75"
NET WEIGHT	1720 lbs	2160 lbs	2600 lbs
