25-50 Drum Sander

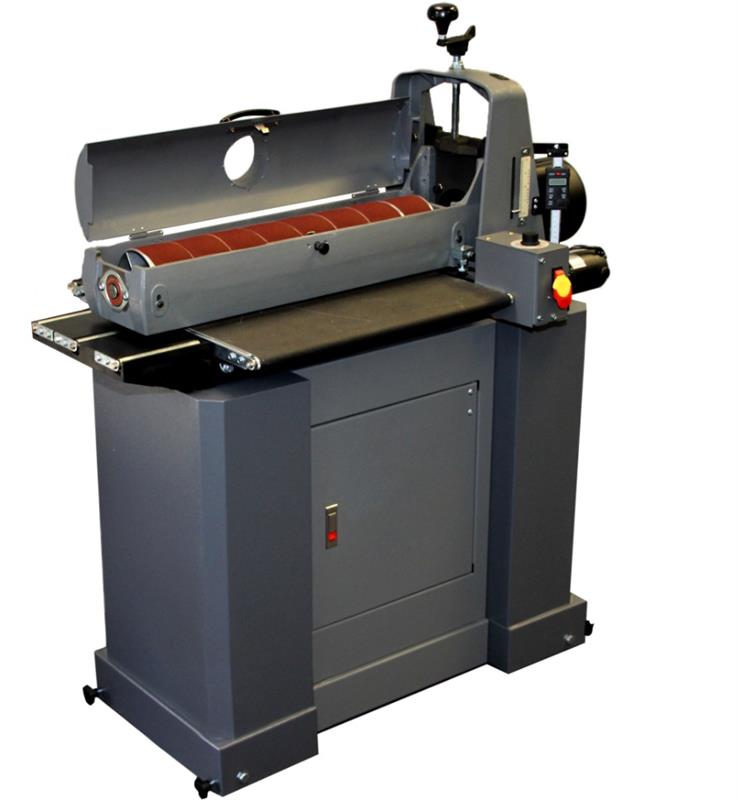

25-50 Drum Sander

SuperMax Tools

(click image to enlarge)
Quick Overview
    • Simple alignment feature Just one nut will adjust the conveyor to parallel the sanding head, making aligning the conveyor to the sanding head fast and easy.
    • Indexed alignment setting Has an indexed alignment setting for narrow and wide stock. When sanding stock wider than 25”, the index lever will properly adjust the conveyor for flawless wide sanding.
    • Easy height adjustments A thrust bearing below the handle and a nut positioned above prevents the drum from moving out of the set position while sanding. No backlash or slop in the height adjustment mechanism allowing easier and smoother height adjustments.
    • Drum will never go “out of alignment” The drum carriage is bolted to the base, preventing any movement or alignment issues.

    Additional Features

    • INTELLISAND™ Technology: Automatically adjusts conveyor speed based on load
      • Prevents gouging, damaging or burning stock
      • Provides consistent finish even with varying grain pattern and density
      • Greatly increases abrasive planing and dimensioning speed
    • Flatness Guarantee: Precision-flattened steel conveyor bed reinforced with four steel cross sections for no “flex” in conveyor, guaranteeing flatness to less than .010? across the width of the sander
    • Abrasive conveyor belt offers the best grip for raw wood, giving you the ability to accommodate stock that is much shorter or thinner
    • Patented Abrasive Attachment System effectively tensions the abrasive wraps, preventing loose abrasive and overlap
    • Easiest access to abrasive fastening system of any drum sander! Extra wide space to access fasteners to eliminate need for special tools.
    • Self-cooling drum prevents overheating and extends abrasive life
    • Tension rollers are adjustable in height and hold down pressure, eliminating snipe
    • Excellent dust extraction as dust cover is formed to shape of drum
      • Metal, not plastic, is formed to maximize air flow and dust extraction
    • Heavy-duty cast iron construction for strength, rigidity and reduced vibration
Interested in this item or want more information?
Call Mon. through Fri. 8:00 AM - 5:00 PM PST
Phone: 714-573-4083
Email: sales@48ws.com

Can't find what you want? Give us a call and we can help you find it.
Details
Sanding Capacity: Maximum Width (in): 50 (two passes)
Minimum Length (in): 2-1/4Maximum Thickness (in): 4Minimum Thickness (in): 1/32
Dimensions (in): 46L x 26W x 53H (on stand)
Drum: 5 x 25 extruded aluminum
Drum Speed: 1740 RPM
Dust Hood: 1- 4? vacuum port, min. 600 CFM recommended
Conveyor Motor: 43 in.-lb. torque, direct drive D.C. motor, infinitely variable 0-10 FPM
Drive Motor (TEFC): 1-3/4 HP
Power Requirements 110 V 20 amp
Shipping Weight (lbs): 369 (3 boxes incl. stand)
Additional Information
Manufacturer: SuperMax Tools
