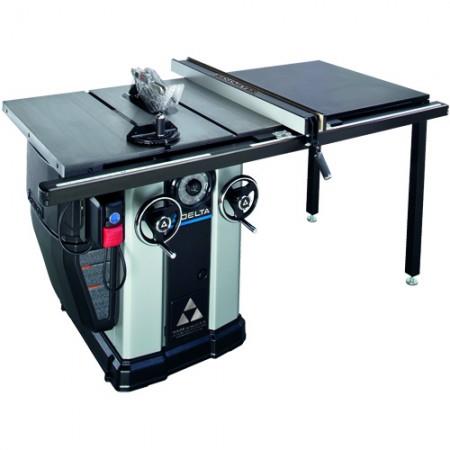

3 HP Motor 10 in. UNISAW® with 36 in. BIESEMEYER® Fence System

36-L336 Type 2

Delta Power Equipment

(click image to enlarge)
Quick Overview
  • Motor: 3 HP, 230V, 1 Phase, 60 Hz
  • Arbor Size: 5/8 in.
  • Blade Diameter: 10 in.
  • Blade Speed: 4,300 RPM
  • Max Rip To Right Of Blade: 36 in.
  • Max Rip To Left Of Blade: 13 1/2 in.
  • Depth of Cut at 45°: 2 1/8 in.
  • Depth of Cut at 90°: 3 1/8 in.
  • Distance - Front of Table to Center of Blade: 18 1/2 in.
  • Distance - Table in Front of Saw at Max Depth of Cut: 13 1/2 in.
  • Max Width of Dado: 1 1/8 in.
  • Miter Gauge Groove: 3/8 in. x 3/4 in.
  • Chip Exhaust Opening: 4 in. and 5 in.
  • Table Height: 35 in.
  • Size of Cast Iron Top (with wings only): 31 in. x 40 in.
  • Table Size with BIESEMEYER® Table, Wing & Laminate Board: 31 in. x 64 in.
  • Length: 71 in.
  • Width: 37 in.
  • Width with Fence on Saw: 46 in.
  • Height: 35 in.
  • Weight: 624 lbs.
Interested in this item or want more information?
Call Mon. through Fri. 8:00 AM - 5:00 PM PST
Phone: 714-573-4083
Email: sales@48ws.com

Can't find what you want? Give us a call and we can help you find it.
Additional Information
Manufacturer: Delta Power Equipment
