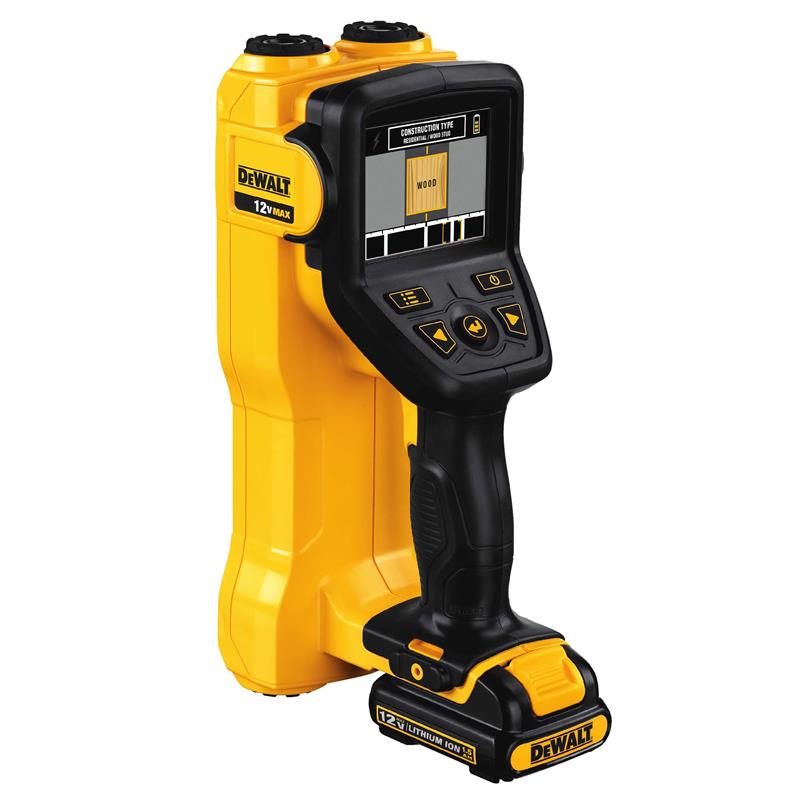

The DCT419S1 Hand Held Wall Scanner sensing technology detects five classes of embedded materials behind wall surfaces up to 3 inches deep. Scans through multiple wall surfaces including drywall, plywood, concrete, and ceramic tile.

(click image to enlarge)

Quick Overview

Interested in this item or want more information?
Call Mon. through Fri. 8:00 AM - 5:00 PM PST
Phone: 714-573-4083
Email: sales@48ws.com

Can't find what you want? Give us a call and we can help you find it.

Details

Features & Specs

FEATURES

Patent pending sensing technologies detect five classes of embedded materials (wood, ferrous metal, non-ferrous metal, plastic and unshielded live electric behind wall surfaces up to 3 inches deep
Scans through multiple wall surfaces including drywall, plywood, concrete and ceramic tile
Automatic mapping feature processes all embedded materials simultaneously
Color, 3.5 inch, LCD display for improved visibility and communication of embedded material type and location
Tracking bar displays embedded material locations of entire mapped area (up to 9.8 feet)

Specifications

Calibration Automatic mapping for all embedded material types
Display Resolution 320 x 240
Display Type 3.5" Color LCD
Embedded Materials Detected Wood, ferrous metal, non-ferrous metal, plastic and unshielded live electric
Ferrous Metal Sensing Depth 3" Maximum
Languages English, Spanish, French
Live Electric (Unshielded) Sensing Depth 3" Maximum
Minimum Assumed Spacing Between Embedded Materials 4"
Non-Ferrous Metal Sensing Depth 3" Maximum
Plastic Sensing Depth 3" Maximum
Position Accuracy +/- 1/2"
Power Tool Type Cordless
Scanning Range Up to 9.8 feet
System 12V MAX*
Wall Surfaces Scanned Through Drywall, plywood, concrete and ceramic tile
Wood Sensing Depth 1.5" Maximum
