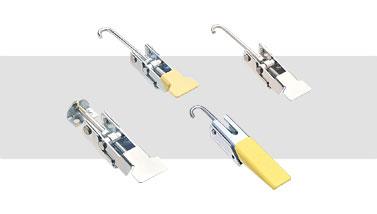

Long latching rods with threaded adjustment provide long grip ranges – up to 144 mm (4.50") – and broad margins of span adjustment – up to 33 mm (1.31").

• Ball-end styles available for use with mating keeper
• Hook-end style available for use with a stud or a hole in the frame or door instead of a keeper
• Available in a range of sizes to satisfy load and dimension requirements
• Low-profile designs provide plenty of grip and leverage in a small space
• Available with and without thick vinyl cushioning grips on actuator handles

Available Options

• Available in steel and stainless steel construction
• Two keeper styles available for small size (500 Series) latches
• A padlockable option is available

Standards and Specifications

• Small sizes (500 Series) provide maximum working loads up to 1550 N (350 lbs.) depending on latching application
• Medium sizes (700 Series) provide maximum working loads up to 3110 N (700 lbs.) depending on latching application
• Large sizes (900 Series) provide maximum working loads up to 4450 N (1000 lbs.) latching application

Industry Applications

• Automotive, Trucks
• Construction Equipment, Off-Highway Vehicles, Farm Equipment
• HVAC
• Industrial Enclosures
• Industrial Machinery, Machine Tools, Metal Cutting
• Lawn Garden Equipment
