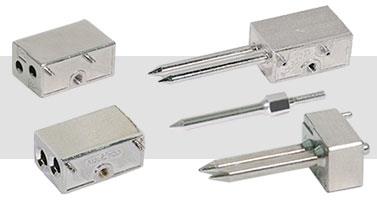

Keying and Receptacle Alignment Modules

1-CN

SouthCo

These robust modules satisfy requirements of the AdvancedTCA® Base Specification for telecom applications – including the drop test – without additional support components. And multiple keying configurations provide any plug-in circuit board application with the ability to limit connections to only appropriately keyed boards.
(click image to enlarge)
Quick Overview
    Interested in this item or want more information?
    Call Mon. through Fri. 8:00 AM - 5:00 PM PST
    Phone: 714-573-4083
    Email: sales@48ws.com

    Can't find what you want? Give us a call and we can help you find it.
    Details

    These matched keying and receptacle modules are designed to ensure accurate alignment and to limit mating capabilities to the appropriate matched plug-in boards. They are both a durable and affordable alternative for fulfilling industry standards or simply assuring compatible board use in modular applications.

    • Robust construction passes PICMG drop test standards without added reinforcement
    • Die-cast zinc bodies and hardened steel pins include a nickel-plated finish to comply with RoHS standards
    • Flat-sided pins can be specified to be positioned in 45 degree increments to control keying options
    • Part of Southco's global one-stop-shopping solution for complete AdvancedTCA® access and mounting hardware

    Available Options

    • Modules are available for front board, backplane, midplane, and rear transition module applications
    • 64 unique pin configurations are available to maximize customization opportunities

    Standards and Specifications

    • Satisfy the requirements of the AdvancedTCA® Base Specification – PICMG 3.0 R2.0

    Industry Applications

    • Aerospace
    • Computer OEMs
    • Contract Equipment Manufacturers
    • Military
    • Networks
    • Telecom Equipment Manufacturers
    • Telecom Service Providers

    Additional Information
    Manufacturer: SouthCo
