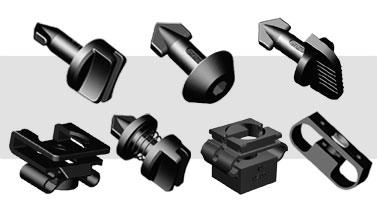

These versatile, economical quarter turn fasteners for high-volume light-duty applications provide a low installed cost, attractive aesthetics, and more generous tolerance ranges than other quarter turn fasteners. Built-in detents indicate full engagement, while a spring-action feature provides a degree of vibration resistance.

(click image to enlarge)

Quick Overview

Interested in this item or want more information?
Call Mon. through Fri. 8:00 AM - 5:00 PM PST
Phone: 714-573-4083
Email: sales@48ws.com

Can't find what you want? Give us a call and we can help you find it.

Details

Corrosion-resistant, non-conductive material is suitable for indoor and outdoor environments. Molded construction makes it easy to configure various headstyles and stud lengths to suit specific application needs.

Lightweight thermoplastic provides high strength-to-weight ratio
Complementary stud/receptacle materials minimize squeak, binding, and wear
Offers higher grip tolerance – 1.2 mm, (.047") – than other quarter turn fasteners
.25" stud design is available in a variety of lengths to accommodate total material thicknesses ranging from .100" to .779", depending on receptacle style
Ergonomic grip designs provide for easy user actuation
Rated for thousands of operating cycles

Available Options

Self-ejecting stud assemblies
Custom configurations and headstyles upon request
Custom color matching

Standards and Specifications

Material Burning Rating Code: UL 94 HB
ASTM E-162 Flame Spread Index 130
Temperature Resistance: -40oF to 194oF (248oF intermittent)

Industry Applications

Automotive
Consumer Products
Electronic Equipment
Medical Equipment

Additional Information

Manufacturer: SouthCo
