DZUS® Rapier Quarter-Turn Fasteners

1-D2

SouthCo

This versatile design offers a comprehensive range of low-cost, grip-tolerant solutions for high volume production applications. It provides a detent and positive stop for consistent positioning and vibration-resistant performance. Quick-access/quick-release provides a great alternative to threaded fasteners in frequently accessed installations.
(click image to enlarge)
Quick Overview
    Interested in this item or want more information?
    Call Mon. through Fri. 8:00 AM - 5:00 PM PST
    Phone: 714-573-4083
    Email: sales@48ws.com

    Can't find what you want? Give us a call and we can help you find it.
    Details

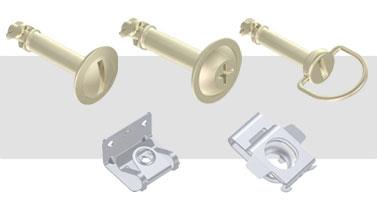

    A Rapier fastener assembly comprises a spiral-cam stud, an optional stud retainer, and a receptacle. Each of these components is available in multiple sizes and styles to suit numerous application loads, material thickness dimensions, and configuration requirements.

    • Snap-in and clip-on receptacles speed assembly time and reduce costs
    • Case-hardened steel studs provide excellent tensile and shear strength
    • Spring-steel receptacle clips provide for a snug, vibration-resistant fit
    • Multiple receptacle styles satisfy a variety of mounting configurations
    • Front-mount press-in receptacles are suitable for thermoplastic materials
    • Mix and match stud headstyles and lengths with appropriate receptacles to accommodate total material thicknesses ranging from 0.5 mm to 30.4 mm

    Available Options

    • Available in 3.5 mm, 5 mm, 7 mm, and 9 mm stud sizes
    • Optional retainers are available in plastic and steel designs to captivate studs

    Standards and Specifications

    • Selected receptacle styles accommodate maximum loads up to 65 lbs.

    Industry Applications

    • Access Panels
    • Automotive Protective Coverings
    • Engine Covers

    Additional Information
    Manufacturer: SouthCo
