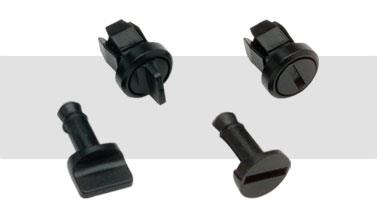

The same push-to-close, quarter-turn-to-open convenience is provided in two specific designs – the DZUS? Pilot case-hardened steel fastener and the DZUS? Arrow engineered thermoplastic fastener. Both styles feature common advantages:

• Easy press-in installation and crisp, positive engagement of fasteners, with no tools required
• Receptacles and fasteners both install from top side of panel for convenient access
• Fastener studs disengage with a simple quarter turn, receptacles stay captive in panels
• Removable panels can be disengaged and refastened to support panels multiple times
• Standard receptacle sizes are based on the 9.5 mm square support hole common to rack rails in network, telecom, and computer applications
• Headstyles include tool-actuated designs for controlled-access security

Available Options

• DZUS Pilot lateral tolerance receptacle style provides approximately +.200" lateral tolerance to stud position
• DZUS Pilot neoprene rubber washers in multiple sizes create a snug vibration-resistant fit between panel and support
• DZUS Pilot self-ejecting stud style includes spring to retract fastener stud when disengaged
• DZUS Pilot fasteners are available in black or bright chromate finish

Standards and Specifications

• Designed Maximum Axial Load: 11 lbs.
• Designed Maximum Shear Strength: 28 lbs.
• Flammability Rating: UL 94 HB
• ASTM E-162 Flame Spread Index: 130

Industry Applications

• Computer
• Electronics
• Networks
• Telecom
