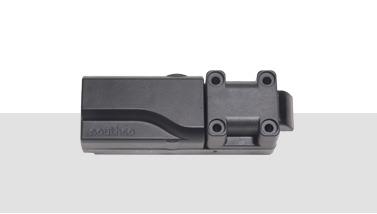

Designed as a complement to a mechanical latch, the E-Keeper provides greater versatility for a wide range of enclosure applications because it puts the electronic actuation in the keeper instead of the latch.

• Provides transition from mechanical to electronic access without enclosure redesign, complex software, or major technical or financial investment
• Accepts signals from a variety of user-specified input devices – numeric keypad, mag-stripe card, RF keyfob, networked security systems, etc.
• Electronic signal permits electronic monitoring, remote monitoring, audit trails, alarms
• Frame-mounted unit protects wiring inside enclosure, avoids damage from repeated opening/closing of the door
• Combining the E-Keeper with a keylocking mechanical latch offers a secure option for a manual over-ride
• Sloped ramp on latch bolt provides push-to-close operation regardless of latch type used.
• Concealed installation option presents a clean exterior look and hides access point from potential vandalism
• Works with a variety of door-mounted mechanical latches
• Can be used for multi-point latching applications with all E-Keepers actuated by one signal

Available Options

• Multiple E-Keeper formats permit mounting in 90°, 180°, or 270° angle to door latch
• Orientation kit allows for field configuration
• Side-mount version for low height panels
• 24 volt option available
• Wiring harness can be included with latch

Standards and Specifications

• 12VDC 200 mA input
• 12VDC output generated when latch bolt is in retracted position (450mA load)
