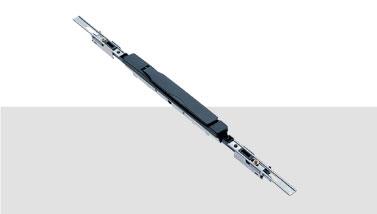

The Southco F2 Multi-Point Latching System, engineered to meet industrial design requirements, is available with varying lengths and latch-point locations to fit a wide range of enclosure shapes and sizes.

• The complete system consists of an actuator assembly, rod assemblies, and keepers – each ordered separately
• Rod assemblies mounted above and below the actuator engage in opposite directions to keep door centered in frame
• Thin-profile mechanism mounts close to door edge, provides compression at door edge and on interior gasket
• Latching mechanisms are all outside the gasket seal, won't disrupt gasket sealing
• System engages when door is up to 15 mm away from the closed position
• Roller on keeper assembly provides for smooth operation
• Includes locking option for added security

Available Options

• Actuator assembly available with locking or non-locking handle
• Rod assemblies are available in multiple lengths, with variable latch-point placement
• Keepers available in grip ranges from 15 mm (.59") to 25 mm (.98")

Standards and Specifications

• Maximum working load: 100 N (22 lbs.) per latch point, 500 N (112 lbs.) for entire system
• Flammability rating: UL94-V0 for all plastic components

Industry Applications

• Computers
• Electronic Enclosures
• Exhibits/Signs
• HVAC
• Industrial Enclosures
• Industrial Machinery, Machine Tools, Metal Cutting
• Medical
• Networking
• Telecommunications
