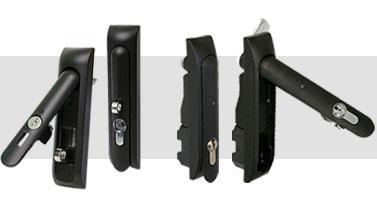

The swinghandle nests into the housing for minimal protrusion and pops up to swing smoothly for easy latch actuation. Robust die-cast zinc construction provides durable, corrosion-resistant performance, with optional gasketing for indoor or outdoor use. A lightweight nylon version provides a reduced-cost alternative for indoor applications.

• A common latch design using numerous cam options allows designers to standardize the external look of their enclosures, yet satisfy different dimensions
• Access control includes multiple tool-access and keylocking/keycode capabilities
• Provides a drop-in replacement for existing latches with industry-standard panel preparation
• Appropriately gasketed metal models satisfy outdoor applications
• Standard pivoting latching mechanisms are available for both single-point and multi-point latching installations
• V0 rating provides flammability protection on nylon version

Available Options

• Access-control options include multiple tool access styles
• Multiple cam options satisfy frame configurations with grip dimensions from 10.3 mm (.41") to 40.3 mm (1.59")

Standards and Specifications

• Maximum working load 250N (56lbf)
• Sealed version is appropriate for NEMA 4 / IP 66 rated enclosures

Industry Applications

• Datacenter/Indoor Enclosures
• Electrical Enclosures
• Industrial Enclosures
• Telecom/Outdoor Enclosures (metal versions)
• Self-Service
