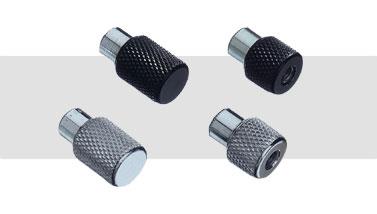

These captive nuts are press-fit into a clean round hole on the panel to provide permanent retention of the nut. Panels lay over protruding studs and captive nuts are tightened down.

• Quickly fastens panel to externally threaded studs
• Hand-operable knurled knob provides solid grip
• Concealed ejection-spring design enables nut to "pop-up" when fully detached from threaded stud
• Provides for easy alignment with multiple fasteners

Available Options

• Through-hole version is grip tolerant, permits threaded stud to pass fully through depth of nut
• Blind hole version provides a more finished appearance, where stud length is contained within the body of the nut
• Available in nine metric/Imperial thread sizes to suit a wide range of installations
• Both versions available in bright finish
• Black powder coated finish available with blind-hole version only

Standards and Specifications

• For use in materials with hardnesses of RB85 or less, such as low-carbon steels that are half hard or softer, stainless steels in the annealed condition, or aluminum

Industry Applications

• Computers
• Electronic Enclosures
• Industrial Enclosures
• Medical
• Networking
• Telecommunications
