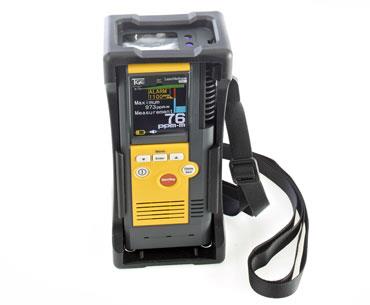

Laser Methane mini

CROWCON-22

Crowcon

The Laser Methane mini (LMm) is an innovative long-range portable detector which allows methane gas to be detected from a distance of up to 100m. This enables easy access to hard-to-reach locations, such as elevated piping or locked premises, and helps keep the operator away from potential leak sources.
(click image to enlarge)
Quick Overview

    Overview

    Laser Methane mini (LMm) is a compact handheld detector that can detect methane gas from a safe distance. Utilising infrared laser technology, methane leaks can be quickly confirmed by pointing the laser beam towards the suspected leak, or along the survey line. This revolutionary technology removes the need to access elevated places, under floor or other hard to reach areas. It is also ideal for surveying large open spaces e.g. landfills or along pipelines.

    NEW Green laser!
    LMm now ships as standard with a green laser guide light which is more visible especially under strong sunlight. Laser Methane mini-Green (LMm-G) also combines the benefit of LMm with additional data storage functions and comes with Bluetooth capability, allowing connection to any Android device through the Gasviewer app. Important data like location, gas levels, date and time can also be saved or emailed to a central point.


    Read about the LaserMethane mini being used as a "Burp O-Meter" in a novel application with the BBC!!

    LMm and LMm-G are easy to operate and require little maintenance. An automatic self check and calibration ensures consistent performance and reliability every time the units are turned on.

    User friendly

    • Point and shoot technology - required little or no training and is easy to use
    • Compact and lightweight - truly portable, can fit in a pocket
    • Green guide laser light - clear visibility of where you are surveying even under strong sunlight
    • Wide OLED display - clear and bright readout on screen

    Reliability

    • No moving parts - little maintenance required
    • Self-check and automatic calibration on start-up - ensures accurate and reliable readings; removes the need to return for regular calibration

    Records

    • Bluetooth and Gasviewer app - for use with Android smartphones
    • Location and camera function in Gasviewer app - save leak location information and find the leak easier next time with the photo function



Interested in this item or want more information?
Call Mon. through Fri. 8:00 AM - 5:00 PM PST
Phone: 714-573-4083
Email: sales@48ws.com

Can't find what you want? Give us a call and we can help you find it.
Details
  LMm LMm-G
Gas Methane (CH4) and methane containing gases Methane (CH4) and methane containing gases
Range 1 - 50,000 ppm*m (%LEL or %Vol available) 1 - 50,000 ppm*m (%LEL or %Vol available)
Laser Light Colour Green Green
Detection distance 0.5m - 30m / 1.5ft - 100ft
(0.5m - 100m / 1.5ft - 330ft using optional
reflective sheet)
0.5m - 30m / 1.5ft - 100ft
(0.5m - 100m / 1.5 ft - 330 ft using optional
reflective sheet)
Size 70 (W) x 179 (D) x 42 (H) mm 70 (W) × 179 (D) × 42 (H) mm
Weight 600g or less (including battery) 530g or less (including battery)
Battery Rechargeable ni-MH battery Rechargeable ni-MH battery
Operating time Approx. 4 hours Approx 5 hours
Blutooth connected - approx 4.5 hours
Operating temperature -17°C to +50°C (1°F to +122°F)  -17°C to +50°C (1°F to +122°F)
Ingress protection IP54 IP54
Certification ATEX: II 2G Ex ib op-pr/op-is IIA T1 Gb
I M2 Ex ib op-pr/op-is
EMC Directive
Laser Class 3R:5mW
Safe Area
EMC Directive and R&TTE Directives
Laser Class 3R:5mW
Bluetooth No Yes
Best Application Hazardous areas Outdoors under strong sunshine
Additional Information
Manufacturer: Crowcon
