Xsafe

CROWCON-11

Crowcon

Crowcon standard design & reliability but without the extra cost of certified electronics.

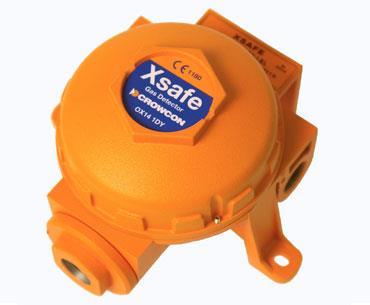

(click image to enlarge)
Quick Overview

    Overview

    XSafe features a tough alloy housing and the same standard of design and reliability as Crowcon hazardous area detectors but without the extra cost of certified electronics.

Interested in this item or want more information?
Call Mon. through Fri. 8:00 AM - 5:00 PM PST
Phone: 714-573-4083
Email: sales@48ws.com

Can't find what you want? Give us a call and we can help you find it.
Details
Size 156 x 166 x 111mm (6.1 x 6.5 x 4.3 inches)
Weight 1kg (2.2lbs)
Enclosure material Aluminium
Ingress protection IP65
Cable entries 1 x M20, 1/2 “NPT or 3/4 NPT* on right-side
Terminations 0.5 to 2.5mm2
Sensor type Catalytic bead
Operating temperature

mV: -40 to +80°C (-40 to 176°F)
mA: -40 to +55°C (-40 to 131°F)
Storage -25°C to +65°C (-13°F to +149°F)
Humidity 10 to 95% RH
Repeatability Zero drift <2% FSD (Typical)
<2% FSD per Month (Typical)
Response time T90 <15s (Typical)
OPerating voltage mA: 10-30V dc
mV: 2.0V dc
Power requirements mA: 50mA at 24V dc 1.2W
mV: 300mA (Typical)
Electrical output mA: 3- wire 4-20mA (current sink or source)
mV: 3- wire mV bridge
Typical signal: 12-15mV/ %LEL CH4
Approvals Not certified for use in hazardous environments
EMC compliance EN 50270
FCC Part 15
ICES- 003
Additional Information
Manufacturer: Crowcon
