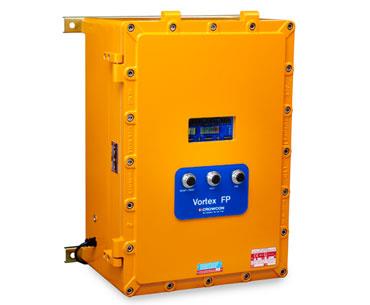

Vortex FP and Vortex FP Compact are ATEX certified Exd Flameproof control panels for use in Zone 1 or Zone 2 hazardous areas such as on offshore production platforms or within refineries. Both offer all of the standard Vortex features, as well as a display fitted with magnetic switches which enable the system to be interrogated or inhibited without opening the system enclosure.

(click image to enlarge)

Quick Overview

Simple to Use

All the day-to-day operations can be completed via push buttons on the front panel - removing the requirement for hot-work permits to complete everyday tasks
Fault and alarm LEDs on the front panel - providing instant indication of system status
Alarm and channel settings can be adjusted at the panel

Highly flexibile

Available in two sizes, including a compact format - for use in areas where space is a limiting factor
Uses Vortex PC software - customisation is easy and user-friendly
Uses industry standard Modbus RTU (or optionally Profibus) communications links - simple to integrate with PLC, DCS or SCADA control systems

Robust and Reliable

Water and dust resistant to IP66
All relays are monitored continuously - ensuring full functionality

Interested in this item or want more information?
Call Mon. through Fri. 8:00 AM - 5:00 PM PST
Phone: 714-573-4083
Email: sales@48ws.com

Can't find what you want? Give us a call and we can help you find it.

Details

Specifications

	Vortex	Vortex Rack/Panel
Size	440 x 640 x 332mm (17.3 x 25 x 13 ins)	450 x 330 x 289mm (17.6 x 13 x 11.4 ins)
Weight	70Kgs (154lbs) approx.	37.5kgs (83lbs) approx.
Enclosure material	LM25 aluminium with polyester powder coating
Ingress protection	IP66
Channels	Up to 12 (1 to 3 4-way input modules)
Operating temperature	-10°C to +40°C (14°F to +140°F)
Humidity	0-95% RH non-condensing
Inputs	Gas 2 or 3 wire 4-20mA (sink or source), 0-5V
	Fire - smoke & heat detectors, manual call-points Up to 3 loops, Up to 20 devices per loop
Outputs	External audible/visual alarm drive Via relays, four 24Vdc 0.5A supplies provided.
Relays	Type Up to 32 SPCO with bus extension module	Relay limitations: 1 or 2 input modules: 2 relay modules max. (16 relays) 3 input modules: 1 relay module only (8 relays)
	Assignment - Common Battery back-up not available
	Assignment - Voting Alarms, faults and system events
	Relay modes Energised/de-energised, latched/non-latched, time-delayed, pulsed
Digital communications	DCS/PLC/PC: RS-485 Modbus or Profibus Local configuration link: RS-232 (configuration software and lead supplied)
Event logging	Up to 300 alarm, power, fault, system events are stored in Non-Volatile Memory
Panel indication	Channel number: 2-digit 7-segment Green LED Gas reading: 4-digit 7-segment Red LED Measurement units: % LEL, ppm, % Vol, Fire Power: Green LED Battery OK: Green LED Run/hold indication: Green LED Channel test mode: Flashing Amber LED System fault - integrity watchdog: Amber LED Displayed information can be altered and outputs can be inhibited during calibration using a magnetic key
Alarm indication	Audible - internal sounder: Piezo Visual - Alarm: Level 1 & 2, Red LED; Fault - Per channel, Amber LED; Inhibit - Per zone, Amber LED
Power	AC mains/DC: 110 or 240Vac 3.2A max 150W PSU 20 - 30Vdc	85 - 264Vac 0.8A max 75W PSU 20 - 30Vdc
	Battery back-up: not available
Approvals	Low voltage directive: EN61010-1 EMC: EN50270, FCC, ICES ATEX Ex 112G, IECEx optional
Functional safety	Validated to IEC61508
