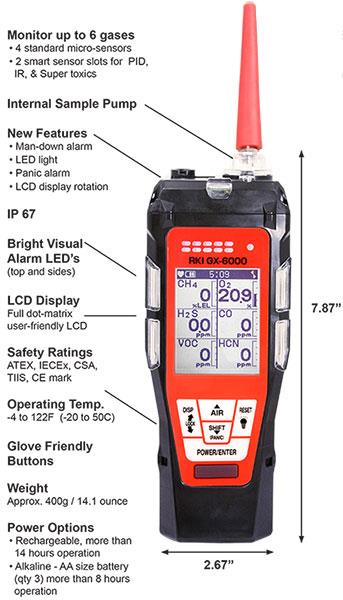

Simply put, the GX-6000 is a game changer. This powerful hand-held instrument is capable of simultaneously monitoring up to 6 gases. In addition to the standard 4 confined space gases which include combustibles, O2, CO, & H2S, the GX-6000 has 2 additional smart channels that accept PID, IR or super toxic sensors. Equipped with a strong internal sample pump, a man-down alarm, a panic alarm, an LED flashlight, and large auto rotating LCD display, the GX-6000 can operate as a single gas PID unit or a multifunctional tool utilizing all 6 channels. The GX-6000 with a PID sensor will come equipped with a library of over 600 VOC gases to choose from as standard. Choosing from the library is easy with a personalized favorites list of 30 commonly used VOC’s as well as a list of 8 of the most recently used VOC’s. The GX-6000 has a rugged design built for the nastiest environments. It is equipped with a removable impact-resistant rubber boot and a dust and water resistant enclosure with an IP-67 rating. With 5 bright LED lights on 3 sides of the instrument, alarms are easily seen from a variety of perspectives. With vibration and loud audible alarm, GX-6000 will easily alert users when needed.

(click image to enlarge)

Quick Overview

Monitor up to 6 gases 2 smart slots that auto recognize PID, IR, and super toxic sensors Library of over 600 VOCs PPM Leak Check mode Man-down alarm Panic alarm Auto display rotation LED Light source Internal sample pump Glove friendly buttons Light weight, small, rugged IP-67 design Interchangeable battery packs Li-ion / alkaline Operates up to 14 hours on Li-ion battery pack, fully recharges in 3 hours Field replaceable sensors, batteries, filters & pump Current time display

Interested in this item or want more information?
Call Mon. through Fri. 8:00 AM - 5:00 PM PST
Phone: 714-573-4083
Email: sales@48ws.com

Can't find what you want? Give us a call and we can help you find it.

Details

Gases & Detectable Ranges
Gas	Measuring Range	Minimum Display	Alarm Set Points	Accuracy * Which ever is greater
Catalytic
Hydrocarbons (CH4, std)	0 - 100% LEL	1% LEL	A1: 10%LEL	± 5% of reading or ± 2% LEL (*)
			A2: 50%LEL
Galvanic
Oxygen (O2)	0 - 40% Vol.	0.1% Vol.	A1: 19.5 Vol.	± 0.5% O2
			A2: 23.5 Vol.
Electro Chemical
Carbon Monoxide (CO)	0 - 500 ppm	1 ppm	A1: 25 ppm	± 5% of reading or ± 5 ppm
			A2: 50 ppm
			TWA 25 ppm
			STEL 200 ppm
Hydrogen Sulfide (H2S)	0 - 100 ppm	0.5 ppm	A1: 5.0 ppm	± 5% of reading or± 2 ppm
			A2: 30.0 ppm
			TWA 1.0 ppm
			STEL 5.0 ppm
Toxics (EC Sensors)
Ammonia (NH3)*	0 - 75 ppm 0 - 400 ppm	0.5 ppm 5 ppm	A1: 25 ppm	± 10% of reading or ± 5% of full scale (*)
			A2: 50 ppm
Chlorine (Cl2)*	0 - 3 ppm 0 - 10 ppm	0.05 ppm 0.1 ppm	A1: 0.5 ppm
			A2: 1.0 ppm
Hydrogen Cyanide (HCN)	0 - 15 ppm	0.1 ppm	A1: 5 ppm
			A2: 10 ppm
Nitrogen Dioxide (NO2)	0 - 9 ppm	0.05 ppm	A1: 3 ppm
			A2: 6 ppm
Sulfur Dioxide (SO2)	0 - 6 ppm		A1: 2 ppm
			A2: 5 ppm
* Available Feb 2016
IR Sensors
Carbon Dioxide (CO2)	0 - 10,000 ppm* 0 - 5% Vol.**	25 ppm 0.2%	A1: 5,000 ppm	± 5% of reading or ± 2% of full scale (*)
			TWA 5,000 ppm
			STEL 10,000
Methane (CH4)*	0 - 100% LEL/ 0 - 100% Vol.	Vol. 1% LEL / 0.5% Vol	A1: 10% LEL
Hydrocarbons**	0 - 100% LEL/ 0 - 30% Vol.		A2: 50% LEL
** Available January 2016, * Available April 2016
PID Sensors
VOC	0 - 50,000 ppb	1 ppb (< 5000 ppb) 10 ppb (> 5,000 ppb)	A1: 5,000 ppb	± 5% of full scale
			A2: 10,000 ppb
	0 - 6,000 ppm	0.1 ppm (< 600 ppm) 1 ppm (> 600 ppm)	A1: 400 ppm
			A2: 1,000 ppm

Common Specifications
Alarm Types	Gas alarm	Man-down	Trouble
	Low and high adjustable	1st - self reset 2nd - latching	Low flow Sensor connection Low battery Circuit error Calibration range
Sample Method	Sample draw pump, flow rate 0.45 LPM, 50 foot sample range
Display	Digital LCD, autobacklite, peak bar display, auto display rotation, and customize order of gases
Audible Alarm	95 dB at 1 ft.
Languages	English, German, Japanese, Korean, Russian
Continuous Operation *	14 hours on Lithium-ion battery pack. Complete recharge in 3 hours. 8 hours Alkaline battery pack (3 AA size within each pack)
Operating Temp. & Humidity	-4°F to 122°F (-20°C ~ +50?), 0- 95% RH non condensing
Dimensions / Weight	2.6” W x 7.8” H x 2” D (H200 x W68 x D52 mm) 14 ounce (400g) (with lithium battery pack)
Case Material	Dust and water resistant with IP-67 approval (exclude sample hose and probe)
Safety Design / Approvals	Explosion proof: IECEx , ATEX , TIIS , (CSA) pending Explosion class :Ex ia IIC T4 Ga Others: CE Marking
Standard Features	2 Smart sensors slots auto recognize sensor changes Library of over 600 VOC’s User defined VOC list. Up to 30 frequently used Recent VOC list for last 8 selected gases Pump and circuit status indicators User & station ID selection menu Datalogging (interval, alarm trend, station and user ID) Snap logging - on demand data logging Demand zero / Auto zero BUMP and CAL expiration alarm Flashlight IrDA communication LEL sensor protection mode
Standard Accessories	Rubber boot Belt clip Hand strap Tapered nozzle Probe with hydrphobic filter and 3’ teflon lined hose
Optional Accessories	Lithium-ion battery pack & charger / alkaline battery charger Filter set • IrDA cable
Warranty	Two years material (including sensors) and workmanship. One year for PID sensor
