THERMAL AND VISIBLE-LIGHT IMAGING AND RECORDING IN A POPULAR ACTION CAMERA FORM FACTOR • Fully radiometric thermal images plus thermal video and recording • Simple power-in/video-out interface over 10-pin mini-USB connector • Switch between thermal, visible, MSX, or PIP imagery in real time ON-BOARD RECORDING OF THERMAL AND VISIBLE IMAGERY TO A CONVENIENT ON-BOARD MICROSD CARD • Record real-time thermal videos with H.264 compression in MOV format • MSX image enhancement for greater image detail in daylight conditions • MAVLink integration with MAVLink-compatible flight controllers FLEXIBLE, POWERFUL CAMERA CONTROL AND CONFIGURATION OPTIONS • Control camera functions with PWM inputs – imagery color palettes, recording start/stop, still image capture, or video streaming switch (thermal, visible, MSX, PIP) • Configure your camera’s recording and control settings over Bluetooth with our mobile app • Field-upgradeability make sure you’ll always have the latest features

(click image to enlarge)

Quick Overview

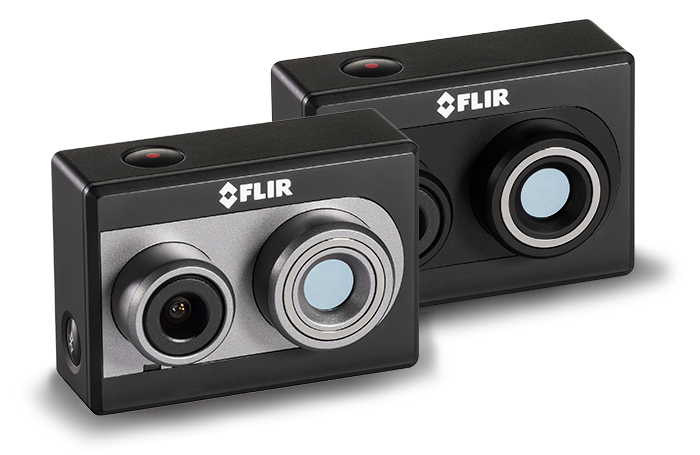

The new FLIR® Duo™ R is the world’s first compact, lightweight, radiometric thermal and visible light imager designed for professional drone applications. The same size and shape as the most popular action cameras, Duo R offers all of the same features as the FLIR Duo – like on-board recording, and real-time remote control of camera functions over PWM – but embeds accurate, calibrated temperature measurements in every pixel of the thermal image for remote, non-contact temperature measurements from your aerial platform. Featuring the cutting edge Lepton thermal sensor, Duo R pairs 160x120 thermal resolution with a 2-megapixel color and low-light camera. Operators can switch between them in flight, select MSX® blended imagery, or view a picture-in-picture mode, and record everything to a microSD card. Duo R has a wide 5-26 VDC input power range, making integration to onboard systems easy. It also gives you two live video output options: analog video over the 10-pin mini-USB connector, or digital video over micro-HDMI. No matter how you look at it, Duo R gives you incredible capabilities in a small package and at an affordable price.

Interested in this item or want more information?
Call Mon. through Fri. 8:00 AM - 5:00 PM PST
Phone: 714-573-4083
Email: sales@48ws.com

Can't find what you want? Give us a call and we can help you find it.

Details

Specifications Overview FLIR Duo R Thermal Imager Uncooled VOx Microbolometer Sensor Resolution 160 × 120 Lens 57° × 44° Spectral Band 7.5 – 13.5 µm Thermal Frame Rates 7.5 Hz (NTSC); 8.3 Hz (PAL) Thermal Measurement Accuracy +/-5°C Visible Camera Resolution 1920 × 1080 Visible Camera FOV 90° Physical Attributes Size 41 × 59 × 29.6 mm Weight 84 grams Image Processing & Display Controls Image Optimization for sUAS? Yes Multiple Color Palettes? Yes – Adjustable in App and via PWM MSX Enhancement? Yes Picture-in-Picture? Yes Interfacing Mini-USB Connector Power in, Analog video out, PWM connections, MAVLink control Input Voltage 5.0 - 26.0 VDC Power Dissipation (Peak) 2.2 W (3.3 W) Remote Control Two PWM Controls (assigned in App) MAVLink interface? Yes Digital Video Output Micro-HDMI; HDMI video at 1080p Storage Media Micro-SD card Environmental Operating Temperature Range 0°C to +50°C Storage Temperature Range -20°C to +60°C Operational Altitude +12,000 feet

Additional Information

Manufacturer: Flir Thermal Imaging
