Details

Sensing Slot Width: 5 mm

Maximum Ratings (Ta=25 °C)

Item	Symbol	Value
Light Emitting Side	Forward Current	I_F	40mA
Reverse Voltage	V_R	3V
Power Dissipation	P_D	75mW
Light Receiving Side	C-E Voltage	V_CEO	30V
E-C Voltage	V_ECO	5V
Collector Current	I_C	20mA
Collector Power Dissipation	P_C	100mW
Operating Temperature ¹	T_OPR	-25~+85 °C
Storage Temperature	T_STG	-40~+85 °C
Soldering Temperature	T_SOL	260 °C

1: Non Dew

Electrical Characteristics (Ta=25 °C)

Item	Symbol	Conditions	Min	Typ	Max	Unit
Light Emitting Side	Forward Current	V_F	I_F=20mA	–	–	1.5	V
Reverse Voltage	I_R	I_F=5V	–	–	10	mA
Peak Wavelength	l_P	I_F=20mA		940		nm
Light Receiving Side	Off-State Collector Current	I_CEO	V_CE=10V I_F=0mA	–	–	0.2	mA
Peak Wavelength	l_P	–		800		nm
Transmitting	On-State Collector Current	I_{C (on)}	V_CE=5V I_F=20mA	0.5	2.0	15	mA
C-E Saturation Voltage	V_{C (sat)}	I_F=20mA I_C=400mA	–	–	0.4	V
Switching Time	Rise Time	tr	V_CC=10V ² I_F=20mA R_L=1kW	–	15	–	ms
Fall Time	tf	–	15	–	ms

Mechanical Characteristics

Vibration Resistance	To withstand 10~55~10Hz, 1.5mm amplitude and 1 minute sweep time in X, Y and Z directions, each for 2 hours.
Shock Resistance	294m/S² (30G) or more.

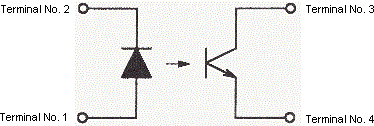

Terminal No.	Signal
1	Anode
2	Cathode
3	Collector
4	Emitter

Detecting Position Characteristics (Reference) (IF=20mA, VCE=5V, Ta=25°C)

Outline Dimensions

Tolerance: ±0.3mm

Notes

1. Please do not submit weighting not less than 0.5kgf per a terminal.
2. Please be careful about a curve of a PBC.

Parts Construction List

No.	Description	Qty.	Materials	Remarks
1	Case	1	PBT (G15%)	Flammability: UL94V-2 or more
2	Cover	1	PBT (G15%)	Flammability: UL94V-2 or more
3	Light Emitting Diode	1	–	GaAs Infrared Light Emitting Diode
4	Emitter	1	–	Photo Transistor

Handling Notes

Careful attention should be made to avoid deformation of components.
Environmental air must be free from corrosive gasses such as hydrogen sulfide or salt water air.
Mount sensor away from direct sunlight and incandescent light.
The side with emitting and receiving elements should be handled very carefully.
Do not wash sensors. Liquid may get into the case and cause damage. If you must clean the surface area, use a soft cloth damped with a washing fluid such as methanol or isopropyl alcohol.
Degrading LED radiant power should be addressed if sensor is used repeatedly over a long period of time.
This product was designed for use in the following applications:
- OA equipment, video equipment, consumer electronics, communication equipment, measuring equipment, and control equipment.
- When designing a system for safety and reliability, be sure to incorporate fail-safe and other appropriate measures.
