Aleph OJ-171 Opto Sensor

OJ-171

Aleph USA

(click image to enlarge)
Quick Overview
    Interested in this item or want more information?
    Call Mon. through Fri. 8:00 AM - 5:00 PM PST
    Phone: 714-573-4083
    Email: sales@48ws.com

    Can't find what you want? Give us a call and we can help you find it.
    Details
    • Sensing Slot Width: 5 mm
    • Slot Depth: 7.5 mm
    • Slit Width: 0.5 mm

    Maximum Ratings (Ta=25 °C)

    Item Symbol Value
    Light Emitting Side Forward Current IF 50mA
    Reverse Voltage VR 4V
    Power Dissipation PD 75mW
    Light Receiving Side C-E Voltage VCEO 30V
    E-C Voltage VECO –
    Collector Current IC 20mA
    Collector Power Dissipation PC 100mW
    Operating Temperature 1 TOPR -25~+85 °C
    Storage Temperature TSTG -40~+85 °C
    Soldering Temperature TSOL 260 °C
    1: Non Dew

    Electrical Characteristics (Ta=25 °C)

    Item Symbol Conditions Min Typ Max Unit
    Light Emitting Side Forward Current VF IF=20mA – – 1.5 V
    Reverse Current – VR=5V – – 10 µA
    Peak Wavelength lP IF=20mA 940 nm
    Light Receiving Side Off-State Collector Current ICEO VCE=10V
    IF=0mA    		 – – 0.2 mA
    Peak Wavelength lP – 800 nm
    Transmitting On-State Collector Current IC (on) VCE=5V
    IF=20mA    		 0.5 – – mA
    C-E Saturation Voltage VC (sat) IF=20mA
    IC=0.4mA    		 – – 0.4 V

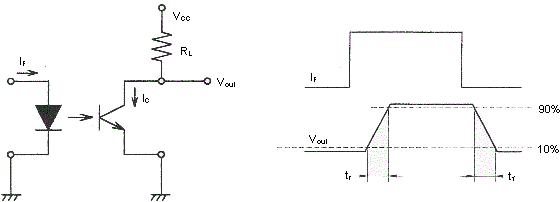

    Switching Time Rise Time tr VCC=10V 2
    IF=20mA
    RL=1kW    		 – 4 – ms
    Fall Time tf – 4 – ms
    Additional Information
    Manufacturer: Aleph USA
