Aleph OJ-235 Opto Sensor

OJ-235

Aleph USA

(click image to enlarge)
Quick Overview
    Interested in this item or want more information?
    Call Mon. through Fri. 8:00 AM - 5:00 PM PST
    Phone: 714-573-4083
    Email: sales@48ws.com

    Can't find what you want? Give us a call and we can help you find it.
    Details
    • Sensing Slot Width: 5 mm
    • Slot Depth: 8 mm
    • Slit Width: 0.5 mm

    Maximum Ratings (Ta=25 °C)

    Item Symbol Value
    Light Emitting Side Forward Current IF 50mA
    Reverse Voltage VR 4V
    Power Dissipation PD 250mW
    Operating Temperature 1 TOPR -20~+85 °C
    Storage Temperature TSTG -40~+85 °C
    Soldering Temperature TSOL 260 °C


    Electrical Characteristics (Ta=25 °C)

    Item Symbol Conditions Min Typ Max Unit
    Light Emitting Side Forward Voltage VF IF=20mA – – 1.5 V
    Reverse Current IR VR=4A – – 10 µA
    Peak Wavelength lP IF=20mA – 940 – nm
    Light Receiving Side Peak Wavelength lP – – 850 – nm

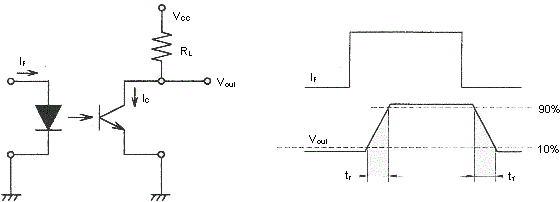

    Transmitting Switching Time Rise Time tr VCC=10V 2
    IF=20mA
    RL=1kW    		 – 0.03 – µs
    Fall Time tf – 0.03 – µs

    Additional Information
    Manufacturer: Aleph USA
