Aleph OM-371-A8 Opto Sensor
OM-371-A8
Aleph USA
(click image to enlarge)
Quick Overview
Interested in this item or want more information?
Call Mon. through Fri. 8:00 AM - 5:00 PM PST
Phone: 714-573-4083
Email:
sales@48ws.com
Can't find what you want? Give us a call and we can help you find it.
Details
Maximum
Ratings (Ta=25 °C)
Item
Symbol
Value
Input
Forward Current
I
F
50mA
Forward Current Derating
1
D
I
F
/°C
-0.33mA/°C
Reverse Voltage
V
R
5V
Pulse Forward Current
I
FP
600mA
2
Output
C-E Voltage
V
CEO
30V
E-C Voltage
V
ECO
5V
Collector Current
I
C
50mA
Collector Power Dissipation
P
C
75mW
Collector Power Dissipation Derating
D
P
C
/°C
-1mW/°C
Operating Temperature
T
OPR
-25~+85 °C
Storage Temperature
T
STG
-40~+85 °C
1: Ta>25 °C
2: __<=100
m
s, __=100Hz
Electrical
Characteristics (Ta=25 °C, VCC=5V±10%)
Item
Symbol
Conditions
Min
Typ
Max
Unit
Input
Forward Voltage
V
F
I
F
=10mA
1.00
1.15
1.30
V
Reverse Voltage
I
R
V
R
=3V
–
–
10
m
A
Peak Wavelength
l
P
I
F
=20mA
940
nm
Output
Off-State Collector Current
I
CEO
V
CE
=16V
I
F
=0mA
–
0.005
0.1
m
A
Peak Wavelength
l
P
–
870
nm
Coupled
Light Current
I
L
3
V
CE
=5V
I
F
=20mA
L=6mm
4
80
–
1400
m
A
Leak Current
I
LEAK
V
CE
=5V
I
F
=20mA
–
500
0.4
nA
Switching Time
Rise Time
t
r
V
CC
=5V
I
C
=2mA
R
L
=100W
–
15
50
m
s
Fall Time
t
f
–
15
50
m
s
Mechanical
Characteristics
Vibration Resistance
To withstand 10~55~10Hz, 1.5mm amplitude and 1 minute sweep time in X, Y and Z directions, each for 2 hours.
Shock Resistance
294m/S
2
(30G) or more.

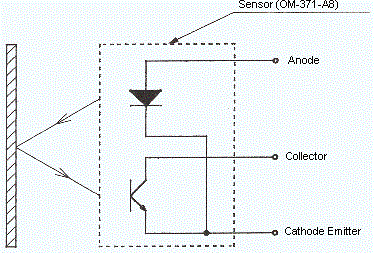

Terminal No.
Signal
1
Collector
2
Cathode – Emitter
3
Anode
Installation
Hole Dimensions (Reference)
Plate Thickness: t=1mm
Plate Thickness: t=1.2mm
Tolerance: ±0.1mm
Parts
Construction List
No.
Description
Qty.
Materials
Remarks
1
Case
1
Polycarbonate
Flammability: UL94V-2 or more
2
Inner Case
1
Polycarbonate
Flammability: UL94V-2 or more
3
PCB
1
CEM-3
Flammability: UL94V-0
4
Connector
1
175489-3
AMP (Natural)
6
Light Emitting Diode
1
–
GaAs Infrared Light Emitting Diode
7
Detector
1
–
Photo Transistor
Handling
Notes
Careful attention should be made to avoid deformation of components.
Environmental air must be free from corrosive gasses such as hydrogen sulfide or salt water air.
Mount sensor away from direct sunlight and incandescent light.
The side with emitting and receiving elements should be handled very carefully.
Do not wash sensors. Liquid may get into the case and cause damage. If you must clean the surface area, use a soft cloth damped with a washing fluid such as methanol or isopropyl alcohol.
Degrading LED radiant power should be addressed if sensor is used repeatedly over a long period of time.
This product was designed for use in the following applications:
OA equipment, video equipment, consumer electronics, communication equipment, measuring equipment, and control equipment.
When designing a system for safety and reliability, be sure to incorporate fail-safe and other appropriate measures.
