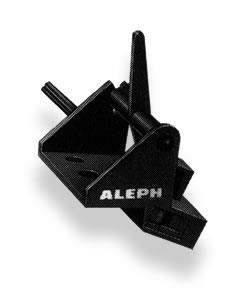

Aleph AS-040 – Counterweight (screw mount) Proximity Sensor

AS-040

Aleph USA

Lever Actuated (physical contact) sensor Recommended for paper sensing applications Different actuator styles for various applications
(click image to enlarge)
Quick Overview
    Interested in this item or want more information?
    Call Mon. through Fri. 8:00 AM - 5:00 PM PST
    Phone: 714-573-4083
    Email: sales@48ws.com

    Can't find what you want? Give us a call and we can help you find it.
    Details

    Specifications

    Item Value
    Contact Form NC
    Contact Rating 10W max.
    Switching Voltage 100VDC max.
    Switching Current 0.5A max.
    Breakdown Voltage (open contact) 250VDC min.
    Contact Resistance (initial) 0.3W max.
    Electrical Life (resistive loads) 107 (6VDC, 10mA)
    Mechanical Life 108
    Operating Temp. -10 ~ +60°C


    Case material: Heat resistant ABS Actuator material: Polyacetal Wire: UL-1007, AWG #26 Dimensions in mm (1 mm = 0.0394 inches)


    ON 15° max.
    OFF 35° min.
    Operating force 1.5g max.
    Additional Information
    Manufacturer: Aleph USA
