Aleph HYR-2034 – General Application Reed Switch

HYR-2034

Aleph USA

(click image to enlarge)
Quick Overview
    Interested in this item or want more information?
    Call Mon. through Fri. 8:00 AM - 5:00 PM PST
    Phone: 714-573-4083
    Email: sales@48ws.com

    Can't find what you want? Give us a call and we can help you find it.
    Details

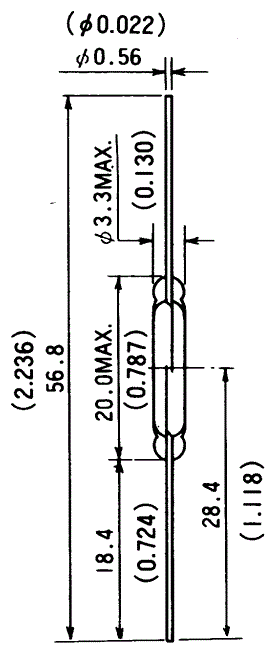

    Specifications/Dimensions

    Item Value
    Contact Form 1A
    Contact Position1 C
    Contact Material Ruthenium3
    Max. Contact Rating 10W
    Max. Switching Voltage 200VDC
    Max. Switching current 0.5A
    Max. Initial Contact Resistance 100mW
    Pull in Value (AT) 15-70
    Min. Drop out Value (AT) 6
    Min. Breakdown Voltage2 300VDC
    Max. Contact Capacitance 0.4pF
    Min. Insulation Resistance 1010 O
    Typ. Resonant Frequency 2.2kHz
    Electrical Life (Resistive loads) 3 X 107 (10VDC, 4mA) 25 X 105 (20VDC, 0.5A)
    Features General application
    1. C: Center gap O: Off center gap
    2. Breakdown voltage specifications are based on Pull-In sensitivity of 25 AT or higher. Contact ALEPH for information for switches with less than 25 AT sensitivity.
    3. Ruthenium Oxide over Palladium.

    Additional Information
    Manufacturer: Aleph USA
