Aleph RD-8N Reed Switch

RD-8N

Aleph USA

(click image to enlarge)
Quick Overview
    Interested in this item or want more information?
    Call Mon. through Fri. 8:00 AM - 5:00 PM PST
    Phone: 714-573-4083
    Email: sales@48ws.com

    Can't find what you want? Give us a call and we can help you find it.
    Details

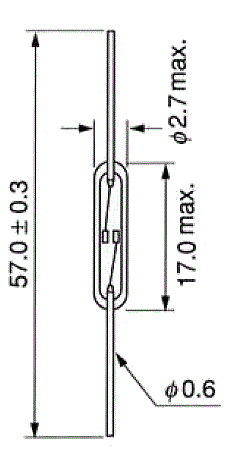

    Specifications/Dimensions

    Item Value
    Characteristics Lamp load use
    Contact Material Rhodium
    Standard Coil N-103
    Ampere-turns 30 ~ 50 AT
    Drop-out Amps (min) 10 A
    Operating Time (max) 1.0 ms
    Release Time (max) 0.05 ms
    Bounce Time 0.5 ms
    Max. Switching Power 10 W
    Max. Switching Voltage 100 VDC
    Max. Switching Current 3 A
    Max. Carrying Current 2.0 A
    Contact Resistance 150 mO
    Withstand Voltage 250 VDC
    Insulation Resistance 109 O (100 VDC)
    Shock and Vibration Resistance Faulty operation: 98 m/s2 Fracture: 490 m/s2
    Operating Temperature -40° ~ 125° C
    Reed Resonant Frequency 4.3 kHz
    Mechanical Life (operations) 108
    Electrical Life (resistive loads) 5 X 107 (5 VDC, 10mA)

    Additional Information
    Manufacturer: Aleph USA
