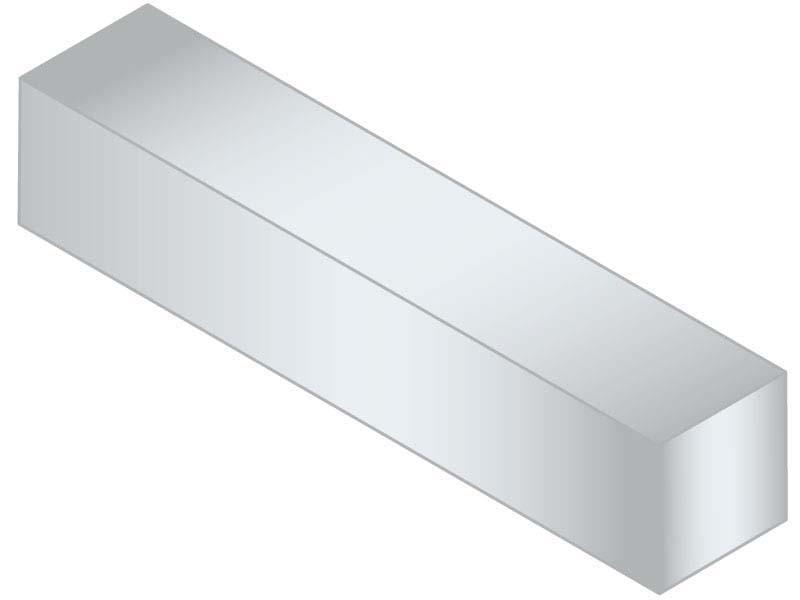

Key 3/16 x 3/16 x 1-1/2 Form B AL PL BIL

0401870187-1500

GL Huyett

(click image to enlarge)
Quick Overview
    Interested in this item or want more information?
    Call Mon. through Fri. 8:00 AM - 5:00 PM PST
    Phone: 714-573-4083
    Email: sales@48ws.com

    Can't find what you want? Give us a call and we can help you find it.
    Details
    Attribute Name
    Value

    Weight (lbs.)
    0.0095
    Finish:
    Plain
    Form:
    B
    Height Maximum:
    .196"
    Height Minimum:
    .180"
    Height Nominal:
    .188" (3/16)
    Inch or Metric:
    Inch
    Material:
    Aluminum
    Material Grade:
    6061
    Overall Length Maximum:
    1.500" (1-1/2)
    Overall Length Minimum:
    1.470"
    Overall Length Nominal:
    1.500" (1-1/2)
    Shaft Diameter:
    5/8"
    Shape:
    Square
    Size:
    3/16" x 3/16"
    Specification:
    ANSI B17.1
    Width Maximum:
    .196"
    Width Minimum:
    .180"
    Width Nominal:
    .188" (3/16)

    All dimensions, specifications, and tolerances are for reference only and are subject to change without notice.

    Additional Information
    Manufacturer: GL Huyett
