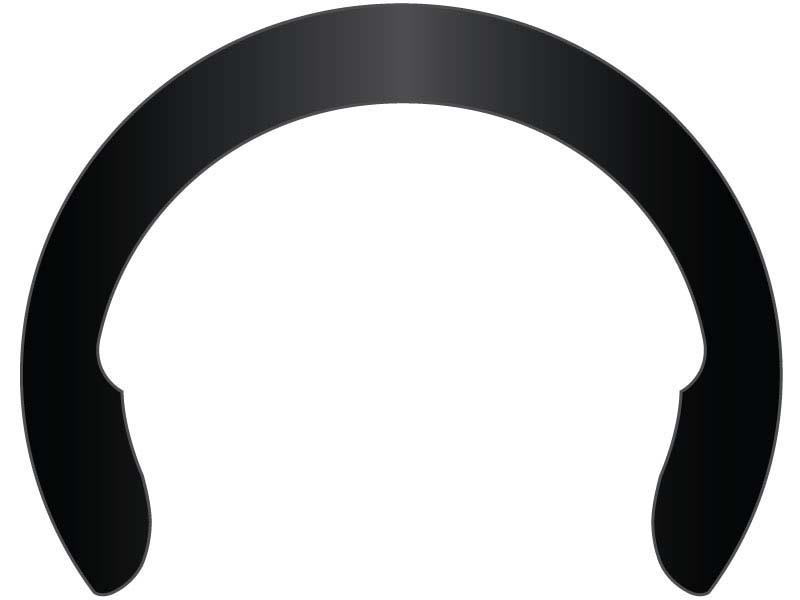

Crescent Ring External 1/8 CS PH

C-012/B

Crescent

(click image to enlarge)
Quick Overview
    Interested in this item or want more information?
    Call Mon. through Fri. 8:00 AM - 5:00 PM PST
    Phone: 714-573-4083
    Email: sales@48ws.com

    Can't find what you want? Give us a call and we can help you find it.
    Details
    Attribute Name
    Value

    Weight (lbs.)
    0.00004
    Allowable Corner Chamfers:
    .011
    Allowable Corner Radii:
    .014
    Brand:
    Rotor Clip
    Clear Outside Diameter:
    .165
    Clearance Diameter Released in Groove:
    .180
    Edge Margin:
    .020
    Finish:
    Phosphate
    Free Diameter:
    .102
    Free Diameter Tolerance:
    +.002/ -.004
    Groove Depth Reference:
    .0095
    Groove Diameter:
    .106
    Groove Diameter to Shaft Concentricity:
    .0015
    Groove Diameter Tolerance:
    ±.0015
    Groove Width:
    .020
    Groove Width Tolerance:
    +.002 / -.000
    Hardness:
    HR15N 86-88.5
    Inch or Metric:
    Inch
    Manufacturer Part Number:
    C-12ST PA
    Material:
    Carbon Spring Steel
    Maximum Section:
    .031
    Maximum Section Tolerance:
    ±.003
    Maximum Thrust Load:
    85
    Shaft Diameter:
    1/8"
    Style:
    Stamped
    Thickness:
    .015
    Thickness Tolerance:
    ±.002
    Type:
    Cresent Ring - Ext

    All dimensions, specifications, and tolerances are for reference only and are subject to change without notice.
