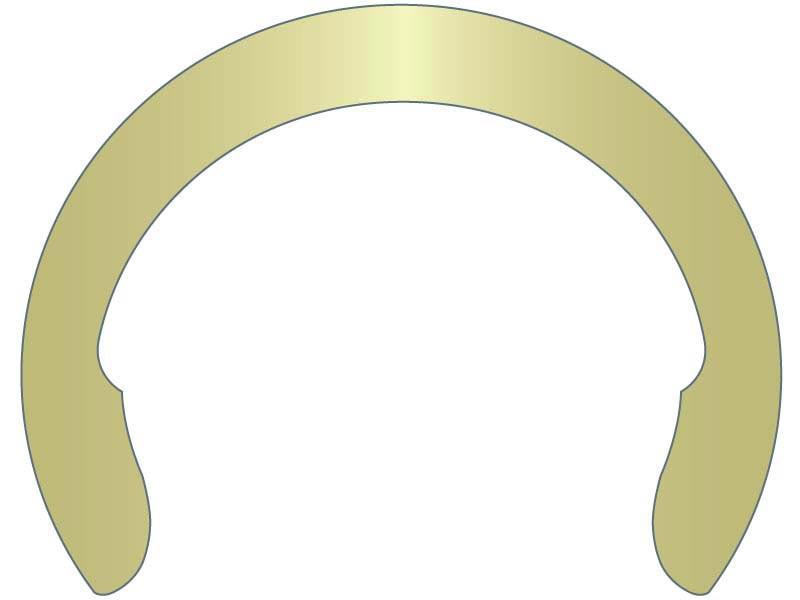

Crescent Ring External 1/4 CS ZY

C-025-ZD/B

GL Huyett

(click image to enlarge)
Quick Overview
    Interested in this item or want more information?
    Call Mon. through Fri. 8:00 AM - 5:00 PM PST
    Phone: 714-573-4083
    Email: sales@48ws.com

    Can't find what you want? Give us a call and we can help you find it.
    Details
    Attribute Name
    Value

    Weight (lbs.)
    0.00016
    Allowable Corner Chamfers:
    .018
    Allowable Corner Radii:
    .023
    Brand:
    Rotor Clip
    Clear Outside Diameter:
    .311
    Clearance Diameter Released in Groove:
    .330
    Edge Margin:
    .030
    Finish:
    Zinc Yellow
    Free Diameter:
    .211
    Free Diameter Tolerance:
    +.003/ -.005
    Groove Depth Reference:
    .015
    Groove Diameter:
    .220
    Groove Diameter to Shaft Concentricity:
    .002
    Groove Diameter Tolerance:
    ±.002
    Groove Width:
    .029
    Groove Width Tolerance:
    +.003 / -.000
    Hardness:
    HR30N 67.5-72
    Inch or Metric:
    Inch
    Manufacturer Part Number:
    C-25ST ZD
    Material:
    Carbon Spring Steel
    Maximum Section:
    .050
    Maximum Section Tolerance:
    ±.004
    Maximum Thrust Load:
    290
    Shaft Diameter:
    1/4"
    Style:
    Stamped
    Thickness:
    .025
    Thickness Tolerance:
    ±.002
    Type:
    Cresent Ring - Ext

    All dimensions, specifications, and tolerances are for reference only and are subject to change without notice.
