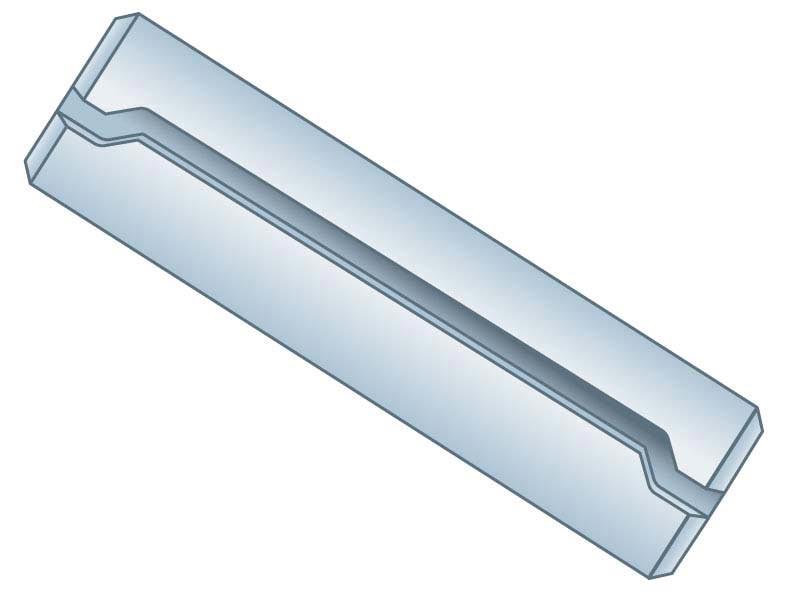

Dowel Bushing 1/4 x 1/2 CS ZN

DB100-250-0500Z

GL Huyett

(click image to enlarge)
Quick Overview
    Interested in this item or want more information?
    Call Mon. through Fri. 8:00 AM - 5:00 PM PST
    Phone: 714-573-4083
    Email: sales@48ws.com

    Can't find what you want? Give us a call and we can help you find it.
    Details
    Attribute Name
    Value

    Weight (lbs.)
    0.0034
    Brand:
    Spirol
    Duty:
    Standard Duty
    Finish:
    Zinc Plate
    Hardness:
    HV 420-545
    Inch or Metric:
    Inch
    Inside Diameter Nominal:
    .250" (1/4)
    Manufacturer Part Number:
    80124
    Material:
    High Carbon Steel
    Material Grade:
    1070-1080
    Outside Diameter Maximum:
    .333"
    Outside Diameter Minimum:
    .323"
    Outside Diameter Nominal:
    .328"
    Overall Length Maximum:
    .500" (1/2)
    Overall Length Minimum:
    .470"
    Overall Length Nominal:
    .500" (1/2)
    Recommended Hole Diameter:
    .313"-.318"
    Type:
    Dowel Bushing
    Wall Thickness Nominal:
    .028"

    All dimensions, specifications, and tolerances are for reference only and are subject to change without notice.
