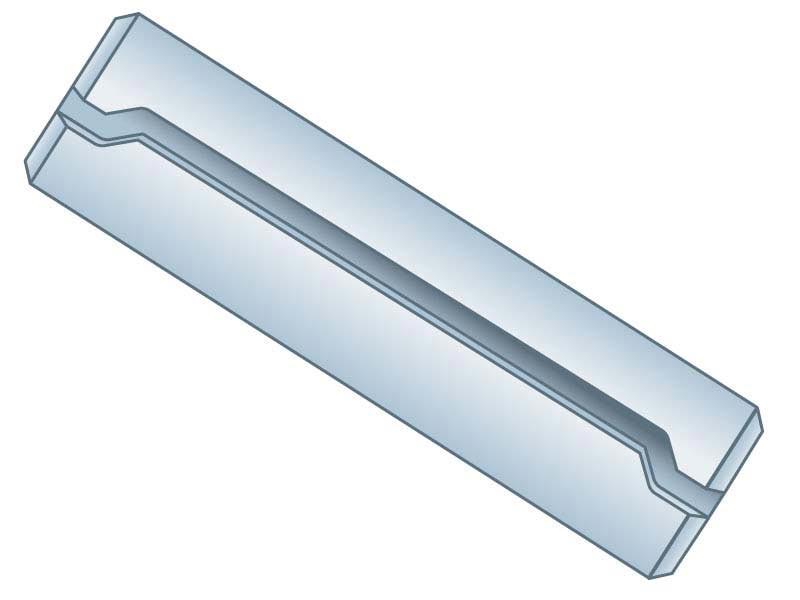

Dowel Bushing 1/2 x 1-1/4 CS ZN

DB100-500-1250Z

GL Huyett

(click image to enlarge)
Quick Overview
    Interested in this item or want more information?
    Call Mon. through Fri. 8:00 AM - 5:00 PM PST
    Phone: 714-573-4083
    Email: sales@48ws.com

    Can't find what you want? Give us a call and we can help you find it.
    Details
    Attribute Name
    Value

    Weight (lbs.)
    0.0354
    Brand:
    Spirol
    Duty:
    Standard Duty
    Finish:
    Zinc Plate
    Hardness:
    HV 420-545
    Inch or Metric:
    Inch
    Inside Diameter Nominal:
    .500" (1/2)
    Manufacturer Part Number:
    80409
    Material:
    High Carbon Steel
    Material Grade:
    1070-1080
    Outside Diameter Maximum:
    .645"
    Outside Diameter Minimum:
    .635"
    Outside Diameter Nominal:
    .640"
    Overall Length Maximum:
    1.250" (1-1/4)
    Overall Length Minimum:
    1.220"
    Overall Length Nominal:
    1.250" (1-1/4)
    Recommended Hole Diameter:
    .625"-.630"
    Type:
    Dowel Bushing
    Wall Thickness Nominal:
    .057"

    All dimensions, specifications, and tolerances are for reference only and are subject to change without notice.

    Additional Information
    Manufacturer: GL Huyett
