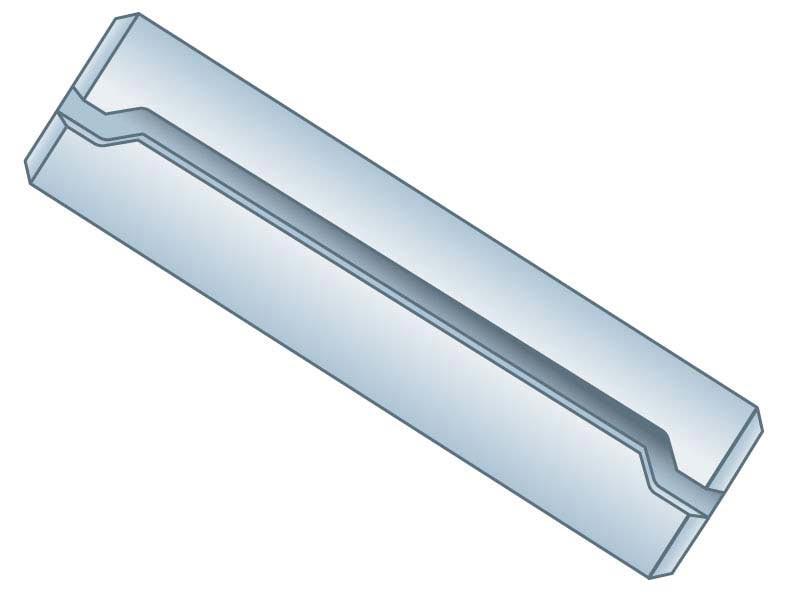

Bushing, Dowel, #10 x 3/8 Plain

DB100-010-0375

GL Huyett

(click image to enlarge)
Quick Overview
    Interested in this item or want more information?
    Call Mon. through Fri. 8:00 AM - 5:00 PM PST
    Phone: 714-573-4083
    Email: sales@48ws.com

    Can't find what you want? Give us a call and we can help you find it.
    Details
    Attribute Name
    Value

    Weight (lbs.)
    0.0031
    Brand:
    Spirol
    Duty:
    Standard Duty
    Finish:
    Zinc Plate
    Hardness:
    HV 420-545
    Inch or Metric:
    Inch
    Inside Diameter Nominal:
    .190"
    Material:
    High Carbon Steel
    Material Grade:
    1070-1080
    Outside Diameter Maximum:
    .270"
    Outside Diameter Minimum:
    .260"
    Outside Diameter Nominal:
    .265"
    Overall Length Maximum:
    .375" (3/8)
    Overall Length Minimum:
    .345"
    Overall Length Nominal:
    .375" (3/8)
    Recommended Hole Diameter:
    .250"-.255"
    Type:
    Dowel Bushing
    Wall Thickness Nominal:
    .022"

    All dimensions, specifications, and tolerances are for reference only and are subject to change without notice.

    Additional Information
    Manufacturer: GL Huyett
