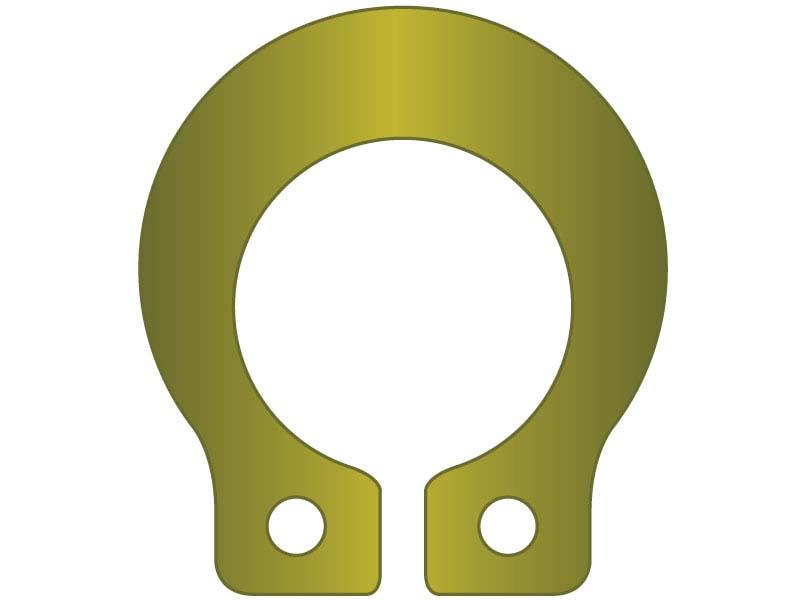

Radial Grip Ring 3/16" CD

MS90707-1018

GL Huyett

(click image to enlarge)
Quick Overview
    Interested in this item or want more information?
    Call Mon. through Fri. 8:00 AM - 5:00 PM PST
    Phone: 714-573-4083
    Email: sales@48ws.com

    Can't find what you want? Give us a call and we can help you find it.
    Details
    Attribute Name
    Value

    Weight (lbs.)
    0.00055
    Allowable Corner Chamfers:
    .038
    Allowable Corner Radii:
    .063
    Clearance Diameter Installed on Shaft:
    .440
    Edge Margin:
    Not Recommended for Use with Grooves
    Finish:
    Cadmium
    Free Diameter:
    .181
    Free Diameter Tolerance:
    +.002 / -.004
    Groove Depth:
    Not Recommended for Use with Grooves
    Groove Diameter:
    Not Recommended for Use with Grooves
    Groove Diameter Tolerance:
    Not Recommended for Use with Grooves
    Groove Width:
    Not Recommended for Use with Grooves
    Groove Width Tolerance:
    Not Recommended for Use with Grooves
    Hardness:
    HR30N 65-69.5
    Height:
    .364
    Hole Diameter:
    .051
    Hole Diameter Tolerance:
    +.010 / -.002
    Inch or Metric:
    Inch
    Lug Height:
    .097
    Lug Height Tolerance:
    ±.003
    Material:
    Carbon Spring Steel
    RPM Limits:
    Over 8000
    Shaft Diameter:
    3/16"
    Shaft Diameter Maximum:
    .189
    Shaft Diameter Minimum:
    .185
    Style:
    Stamped
    Thickness:
    .035
    Thickness Tolerance:
    ±.003
    Type:
    Grip Ring - Grvlss Ext

    All dimensions, specifications, and tolerances are for reference only and are subject to change without notice.

    Additional Information
    Manufacturer: GL Huyett
