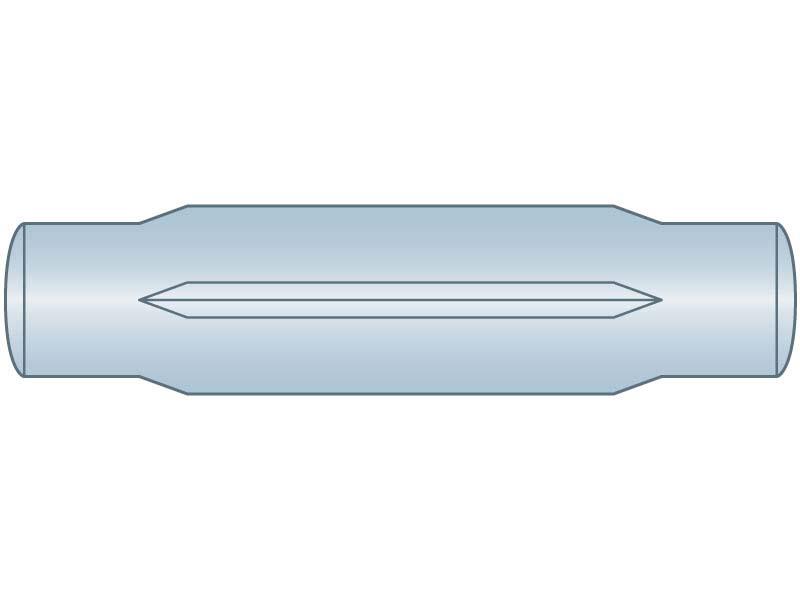

Groove Pin 3/32 x 1/4 Type U ZC

GP-0093-0250-U

GL Huyett

(click image to enlarge)
Quick Overview
    Interested in this item or want more information?
    Call Mon. through Fri. 8:00 AM - 5:00 PM PST
    Phone: 714-573-4083
    Email: sales@48ws.com

    Can't find what you want? Give us a call and we can help you find it.
    Details
    Attribute Name
    Value

    Weight (lbs.)
    0.0005
    Brand:
    Driv-Lok
    Double Shear Strength Minimum:
    890 lbs
    Expanded Diameter Maximum:
    .1020"
    Expanded Diameter Minimum:
    .1000"
    Expanded Diameter Nominal:
    .1010"
    Finish:
    Zinc Clear
    Inch or Metric:
    Inch
    Manufacturer Part Number:
    F01262
    Material:
    Low Carbon Steel
    Outside Diameter Maximum:
    .0938" (3/32)
    Outside Diameter Minimum:
    .0928"
    Outside Diameter Nominal:
    .0938" (3/32)
    Overall Length Maximum:
    .2600"
    Overall Length Minimum:
    .2400"
    Overall Length Nominal:
    .2500" (1/4)
    Specification:
    ASME B18.8.2
    Type:
    Type U

    All dimensions, specifications, and tolerances are for reference only and are subject to change without notice.

    Additional Information
    Manufacturer: GL Huyett
