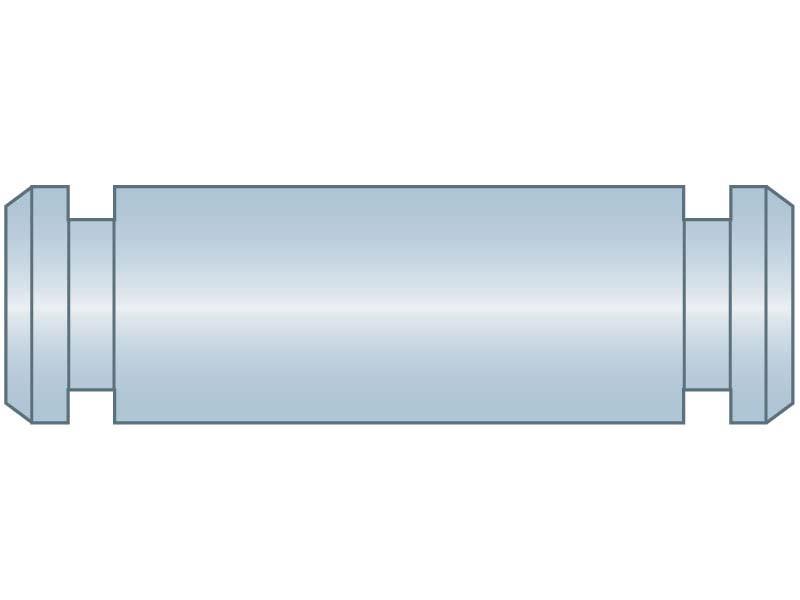

Grooved Headless Pin 3/8 x 1-1/2 ZC

HLPG-0375-1500

GL Huyett

(click image to enlarge)
Quick Overview
    Interested in this item or want more information?
    Call Mon. through Fri. 8:00 AM - 5:00 PM PST
    Phone: 714-573-4083
    Email: sales@48ws.com

    Can't find what you want? Give us a call and we can help you find it.
    Details
    Attribute Name
    Value

    Weight (lbs.)
    0.0578
    Effective Length Maximum:
    1.520"
    Effective Length Minimum:
    1.500" (1-1/2)
    Effective Length Nominal:
    1.500" (1-1/2)
    Finish:
    Zinc Clear
    Groove Diameter:
    .303"
    Groove Width Maximum:
    .041"
    Groove Width Minimum:
    .039"
    Groove Width Nominal:
    .039"
    Inch or Metric:
    Inch
    Material:
    Low Carbon Steel
    Outside Diameter Maximum:
    .375" (3/8)
    Outside Diameter Minimum:
    .373"
    Outside Diameter Nominal:
    .375" (3/8)
    Overall Length Maximum:
    1.868"
    Overall Length Minimum:
    1.818"
    Overall Length Nominal:
    1.844" (1-27/32)

    All dimensions, specifications, and tolerances are for reference only and are subject to change without notice.

    Additional Information
    Manufacturer: GL Huyett
