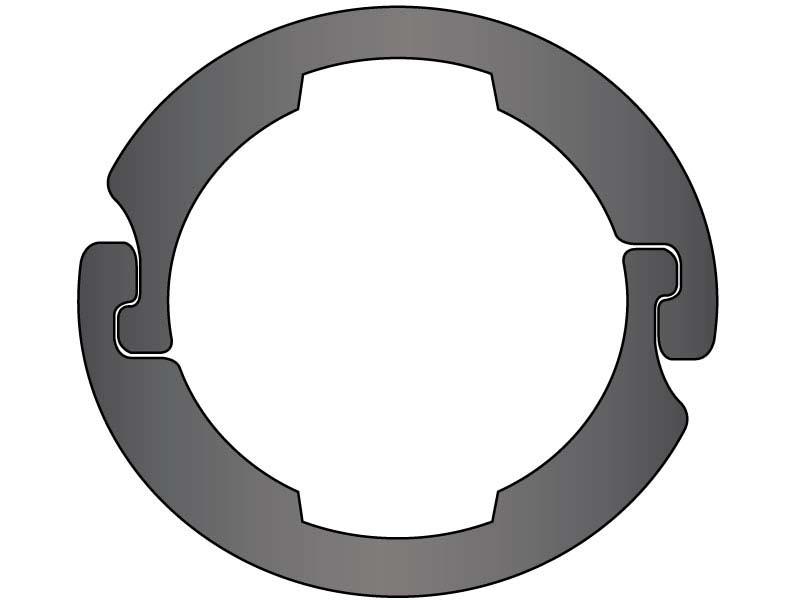

External Interlocking Ring 63/64" PH

LC-098

GL Huyett

(click image to enlarge)
Quick Overview
    Interested in this item or want more information?
    Call Mon. through Fri. 8:00 AM - 5:00 PM PST
    Phone: 714-573-4083
    Email: sales@48ws.com

    Can't find what you want? Give us a call and we can help you find it.
    Details
    Attribute Name
    Value

    Weight (lbs.)
    0.0075
    Allowable Corner Chamfers:
    .066
    Allowable Corner Radii:
    .086
    Brand:
    Rotor Clip
    Clearance Diameter Released in Groove:
    1.273
    Edge Margin:
    .168
    Finish:
    Phosphate
    Free Diameter Tolerance:
    ±.004
    Free Inside Diameter:
    .863
    Groove Depth:
    .056
    Groove Diameter:
    .872
    Groove Diameter to Shaft Concentricity:
    .004
    Groove Diameter Tolerance:
    ±.003
    Groove Width:
    .056
    Groove Width Tolerance:
    +.004 / -.000
    Hardness:
    HRC 47-52
    Inch or Metric:
    Inch
    Manufacturer Part Number:
    LC-98ST PA
    Material:
    Carbon Spring Steel
    Maximum Section:
    .188
    Maximum Section Tolerance:
    ±.006
    Maximum Thrust Load:
    1250 lbs
    Shaft Diameter:
    63/64"
    Style:
    Stamped
    Thickness:
    .050
    Thickness Tolerance:
    ±.002
    Type:
    Interlocking Ring - Ext

    All dimensions, specifications, and tolerances are for reference only and are subject to change without notice.
